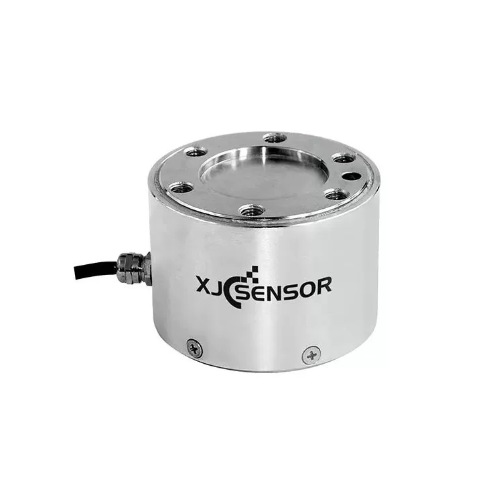

XJCSENSOR X-3A-Y100 3 Axis Load Cell (10kN~50kN)
Manufacturer: XJCSENSOR Model: X-3A-Y100 - Contact
Capacity: 10kN~50kN
Non-linearity: ≤1%F.S.
Repeatability: ≤0.2%F.S.
Zero balance: ±2%F.S.
Operating temp range: -20~75°C
Compensated temp range: -10~40°C
Insulation: ≥2000MΩ/50VDC
Recommended excitation voltage: 5-10 VDC
Safe load limit: 150%F.S.
Temp effect on output: ≤0.1%F.S./10°C
Temp effect on zero: ≤0.1%F.S./10°C
Long-term crosstalk error: ≤3%F.S.
Protection class: IP65
Cable size: φ6*4m
