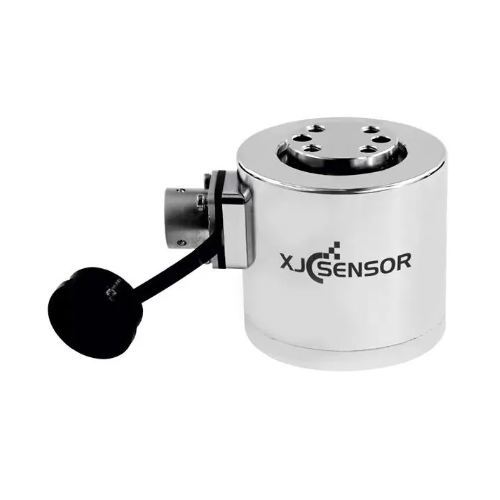

XJCSENSOR X-3A-Y46 3 Axis Load Cell (5kg~50kg)
Manufacturer: XJCSENSOR Model: X-3A-Y46 - Contact
Capacity: 5kg~50kg
Non-linearity: ≤1%F.S.
Repeatability: ≤0.2%F.S.
Zero balance: ±2%F.S.
Operating temp range: -20~75°C
Compensated temp range: -20~80°C
Insulation: ≥2000MΩ/50VDC
Recommended excitation voltage: 5-10 VDC
Safe load limit: 150%F.S.
Temp effect on output: ≤0.1%F.S./10°C
Temp effect on zero: ≤0.1%F.S./10°C
Long-term crosstalk error: ≤1%F.S.
Protection class: IP64
Cable size: φ6*5m
