Capacity: 0-200 Kg
Material: Stainless steel
Alloy steel
Nonlinearity: 0.2%F.S.
Rated output: 1.0-1.5mV/V
Recommended excitation: 5-10VDC
Maximum excitation: 15VDC
Protect class: IP64
Compensated temp range: -10~40°C
Hysteresis: 0.2%F.S.
Operating temp range: -20~80°C
Repeatability: 0.2%F.S.
Insulation: ≥5000MΩ/100VDC
Input impedance: 380 ±30Ω (750±50Ω)
Output impedance: 350 ±10Ω (700±10Ω)
Creep (30min): 0.2%F.S.
Temp effect on output: 0.2%F.S./10°C
Zero balance: ±0.05 mV/V
Temp effect on zero: 0.2%F.S./10°C
Limit load: 150%
Breaking load: 200%
Cable size: Ø3x3m
Life: Full scale more than 1 million times
Cable Connection: Ex+: Red； Ex-: Black； Sig+: Green； Sig-: White

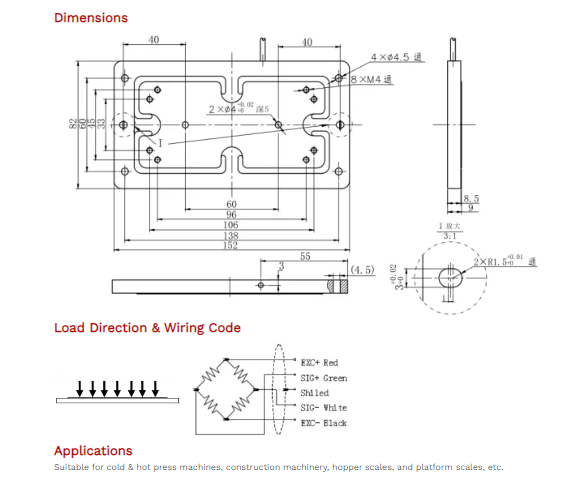

Detail
