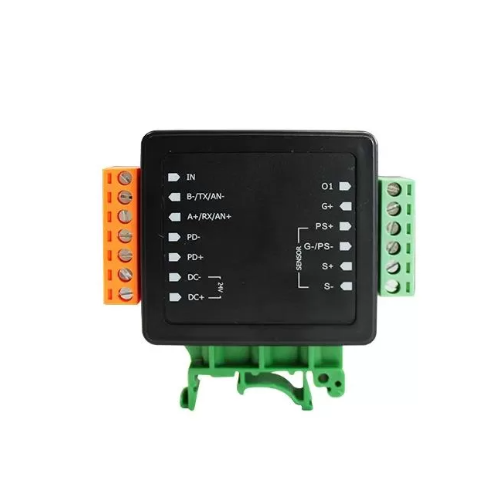

XJCSENSOR X-FD-R4F Digital Module (5VDC)
Manufacturer: XJCSENSOR Model: X-FD-R4F - Contact
Power supply: 5VDC
Material: Plastic
Operating Voltage: 24VDC
Rated input: 0.5-3.0mV/V
Non-linearity: 0.1%-0.03% F.S.
Resolution: 1/10000
Hysteresis: 0.1%-0.05%F.S.
sampling rate: 10 , 80
Repeatability: 0.1%-0.05% F.S.
Operating temperature range: -10 ℃ to 50 ℃, humidity below 85 %RH
Zero balance: ±2%F.S.
Display accuracy: -99999-99999
Power: about 2W
Transmission output: RS232, RS485, 0-10V, 4-20mA output
Cable connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White
