Capacity: 5kg,10kg,20kg,30kg,40kg,50kg,75kg,100kg,300kg,500kg
Rated output: 2.0±0.2%mV/V
Non-linearity: 0.02%F.S.
Hysteresis: 0.02%F.S.
Repeatability: 0.02%F.S.
Creep(30 min): 0.03%F.S.
Zero balance: ±2%F.S.
Temp effect on zero: 0.03%F.S./10°C
Temp effect on output: 0.03%F.S./10°C
Operating temp range: -20~80°C
Compensated temp range: -10~40°C
Input resistance: 385±30Ω
Output resistance: 350±5Ω
Insulation: ≥5000MΩ/50VDC
Recommended excitation voltage: 5-10V
Limit load: 200%
Breaking load: 300%
Cable size: φ5x4m
Protection class: IP68
Cable Connection: Ex+: Red；Ex-: Black；Sig+: Green；Sig-: White

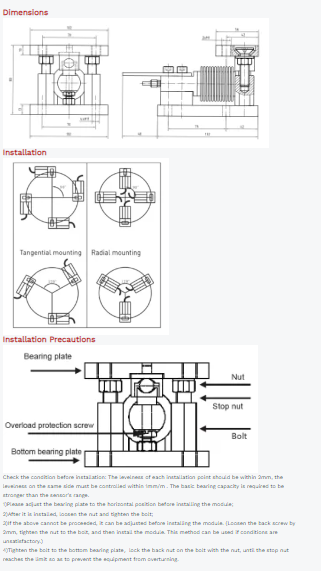

Detail
