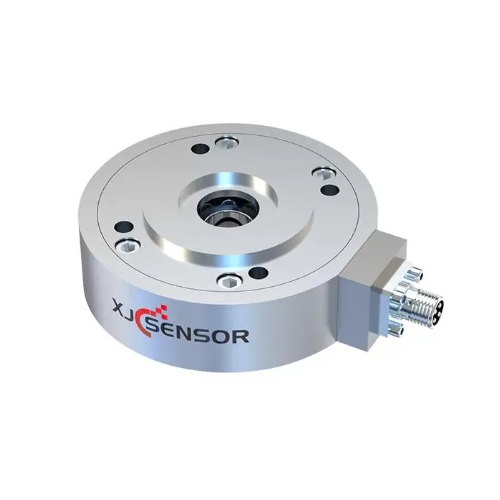

XJCSENSOR XJC-ZL13-150-35-6 Through-hole Type Tension Sensor (150 Kg)
Manufacturer: XJCSENSOR Model: XJC-ZL13-150-35-6 - Contact
Capacity: 150 Kg
Rated output: 1.5±0.2%mV/V
Non-linearity: 0.3% F.S.
Repeatability: 0.15%F.S.
Zero balance: ±2% F.S.
Operating temp range: -20~80°C
Compensated temp range: -10~40°C
Temp effect on zero: 0.02%F.S/°C
Insulation: ≥2000MΩ/100VDC
Recommended excitation voltage: 5~10VDC
Limit load: 1000%F.S.
Cable size: φ5x5m
Protection class: IP65
