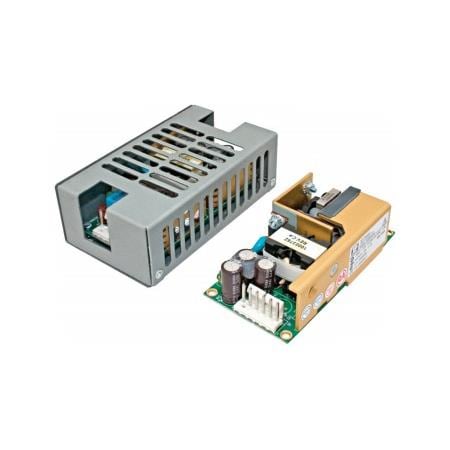

XP Power ECM100DT LOOM AC-DC Converter LOOM KIT for ECM100 MULTIPLE OUTPUT

Name: XP Power ECM100DT LOOM AC-DC Converter LOOM KIT for ECM100 MULTIPLE OUTPUT
Brand: XP Power

ModelECM100DT LOOM

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Width: 63.5 mm (2.5 in)

Height: 30.5 mm (1.201 in)

Length: 114.3 mm (4.5 in)

Industry: Medical, Industrial

Approvals: ANSI/AAMI, CSA/cUL, EN60601-1, EN60950-1, UL60950-1

Compliance: ANSI/AAMI, CSA/cUL, EN60601-1, EN60950-1, UL60950-1

Efficiency: 85 %

Output Power: 80 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 2 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12 A

Output Current-Channel 2: 3 A

Output Voltage-Channel 1: 5 VDC

Output Voltage-Channel 2: 12 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
