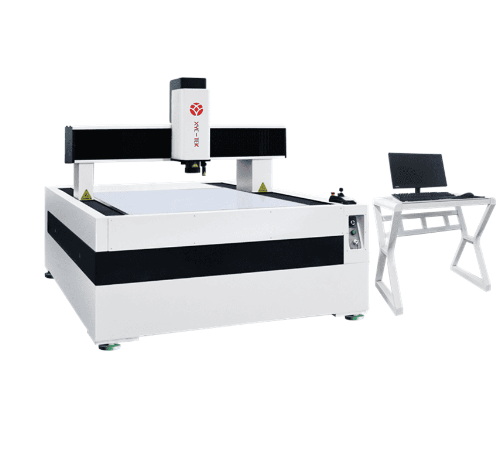

Xyc-tek UNG-GAN-700 Bridge Style Full-Automatic Video Measuring Machine (700*600*200mm, 0.7 ~ 4.5 x/44 ~ 258x)
Manufacturer: Xyc-tek Model: UNG-GAN-700 - Contact
Measuring Range (mm): 700*600*200
Weight (kg): 1200
Dimension(mm): 1420*1700*1500
Accuracy(um): 3.0+L/200
XY Max Move Speed: 350mm/s
Loadweight (kg): 30
Repeatability (μm）: 0.003
Operating way: Joystick + software
Motion controller: UWC3500 (full closed loop controller)
Magnification: Optics magnification :0.7 ~ 4.5 x; Image magnification: 44 ~ 258x
Software: INSPEC CNC automatic measurement software
Power: 220 V/ 50 Hz / 3 A
Working environment: Temperature: 20 ℃ ± 2 ℃ , temperature change < 2 ℃ / hr, Humidity:30 ~ 80%
