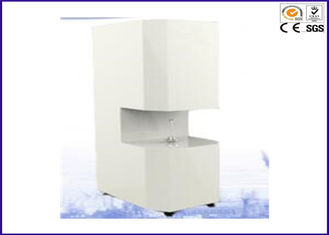

YuYang YY427 Textile Vertical Flame Test Apparatus Micro Combustion Calorimeter ASTM D7309

High-precision MFC (mass flow controller O2 and N2 flow control: the control range of 20-200 cm 3 / min; response time is less than 0.1S, accuracy F.S ± 1%.

Oxygen sensor range: 0-100%, T90 <6S. Precision ± 0.1%, the linear range: F.S ± 1%

Temperature range: room temperature -1000 ℃, imported electric wire, over-temperature protection, high-performance chrome aluminum heat

Calculate heat release rate coefficient (W / g), combustion heat (J / g), ignition temperature (° C), etc. parameter.

Sample heating rates are 1 ° C / s and 2 ° C / s.

Size: 343(W)X663(D)X1560(H)mm

Power: AC220V,16A

WT: 80kg

Gas source: Oxygen and nitrogen compressed air of Purity 99.5%
