Structure:

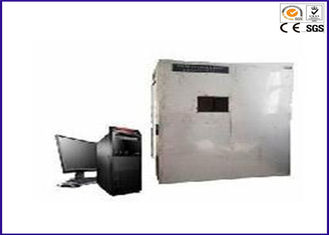

1. The size of each side of the chamber is 3000mm±30mm. The internal chamber is made of SUS 304 stainless steel, stuffed with calcium silicate fireproof material . The external chamber is made of iron with powder coating processing.
2. All of the tooling in the interior is made of stainless steel, beautiful and anti-corrosive.
3. The total area of the vent hole is 50cm2±10cm2, and it shall be always open during the test; the height of the guard board is 1000mm.
4. Configure wire and cable test rack and weights as per standard requirements.
5. The door of the test chamber comes with a glass window on opposite sides, installed with sealed and transparent windows ( Min. 100mmx100mm) for transmitting the light of horizontal optical measuring system, 2150mm±100mm above the ground.
6. The photocell and the light source are placed in the center of the two walls of each window, without physical contact.
Smoke density test system:
1. Light source: Halogen lamps with clean crystal bulbs and tungsten filament; 2900 k color temperature;100W,DC12V, nominal luminous flux 2000lm~3000lm.
2. The range of light density 0%~100%.
3. Allow installing special light source for smoke density and import high resolution photocell receiver on the outside wall.
4. The laboratory is equipped with door and window seal structure.
5. The standard power of light source is 100W and the standard voltage is DC 12V.
6. Light path calibration system: 0 ~ 100% point calibration.
Combustion source:
1. Ethyl alcohol 90%±1%;methyl alcohol 4%±1%;water 6%±1%;
2. Alcohol burning box:
3. Alcohol burning box is 100mm±10mm above the ground;
