Features:

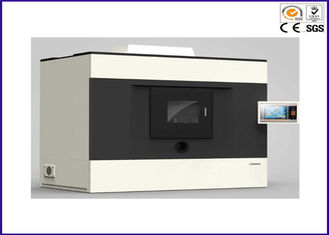

1. Test box steel frame structure, thick steel electrostatic paint, the volume is greater than 4 cubic meters.
2. Large observation window, easy to observe the burning state of the sample; observation window is free to slide.
3. Software control motor: automatically change the direction of the angle of the torch according to the standard sample applied flame.
4. United States HUMBOLDT ladder Rui fire, diameter 9.5 ± 0.3MM, in line with ASTM D5025 standards.
5. Optional flame temperature calibration package.
6. At the top of the exhaust device, extraction of combustion generated by the exhaust.
7. Automatic sealing device ventilation system.
8. Import high-precision flowmeter.
9. can be customized test time.
10. Precision differential pressure gauge can measure combustible gas back pressure.
11. Pulse high-voltage electronic automatic ignition.
12. PLC + 10.2 "touch screen, to achieve control / detection / calculation / data display
test time and test times can be set on the touch screen.
Test results are automatically collected and calculated, the touch screen display and save
Test standard the reference value can be viewed on the screen.
Specification:
Equipment size: 2010 (W) × 1200 (D) × 2150 (H) mm.
Power: AC220V, 10A.
Weight: about 400kg.
Passenger gas source purity of 98% or more methane.
