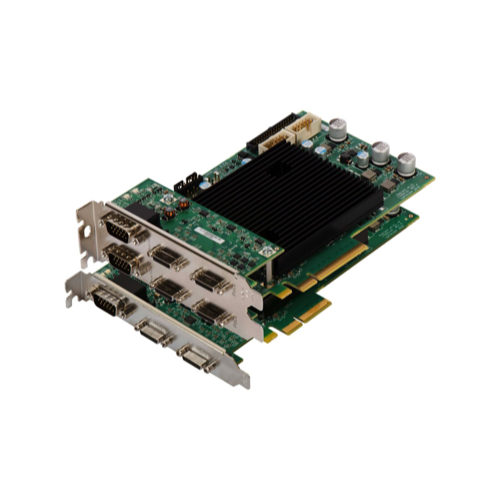

Interconnect: PCIe 2.1 x1 / x4 / x8
Standard: Camera Link 2.1
Configuration:
One Base Camera Link port (single-Base)
Two (2) independent Base Camera Link ports (dual-Base)
One (1) Medium/Full Camera Link port (single-Full)
Up to 80-bit mode
Four (4) independent Base Camera Link ports (quad-Base)
Two (2) independent Medium/Full Camera Link ports (dual-Full)
Up to 80-bit mode
Speed: 20 MHz to 85 MHz Camera Link clock
Connectors: HDR26 (mini Camera Link)
Power outpt: PoCL with SafePower
Miscellaneous:
Extended
Camera Link cable length support
Supports frame and line scan sources
Memory type: DDR3 SDRAM
Quantity: 256 MB, 512 MB or 1 GB
Purpose: Image buffering and preprocessing
Onboard look-up tables: 8-/10-/12-bit suppor
Onboard Bayer interpolation: GB, BG, GR, and RG pattern support
Onboard color space conversion - Input formats: 8-/16-bit mono/Bayer, 24-/48-bit packed BGR
Onboard color space conversion - Output formats: 8-/16-bit mono, 24-/48-bit packed/planar BGR, 16-bit YUV, 32-bit BGRa
I/O type:
Three (3) TTL configurable auxiliary I/Os per connector
Two (2) LVDS auxiliary inputs per connector
One (1) LVDS auxiliary output per connector
Two (2) opto-isolated auxiliary inputs per connector
I/o connectors:
One (1) / two (2) DBHD-15 male GPIO connector(s) (single-Base, dual-Base and single-Full / quad-Base and dual-Full)
One (1) / two (2) optional additional DBHD-15 male GPIO connector(s) (dual-Base / quad-Base)
I/Os synchronization:
One (1) quadrature rotary encoder per Camera Link port
Four (4) 16-bits timer
Physic form factor:
Half-length, low profile, PCIe add-in card with a full height bracket (single-Base)
Half-length, full-height, PCIe add-in card (dual-Base, sigle-Full, quad-Base, and dual-Full)
Dimensions (L x W x H):
167.6 x 68.9 x 18.7 mm (6.6 x 2.73 x 0.74 in) (single-Base)
167.6 x 111.1 x 18.7 mm (6.6 x 4.38 x 0.74 in) (dual-Base, single-Full, quad-Base and dual-Full)
Additional Camera Link module for quad-Base / dual-Full: 45.0 x 106.65 x 18.7 mm (1.77 x 4.20 x 0.74 in)
Operating temperature: 0°C to 55°C (32°F to 131°F)
Relative Humidity: Up to 95% (non-condensing)
