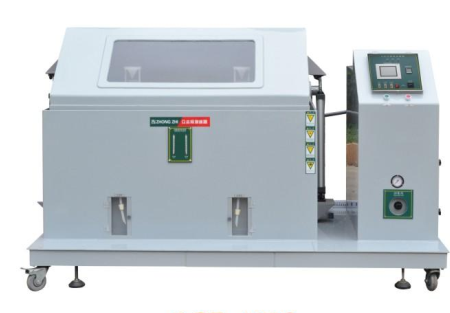

Zhongzhi CZ-160C Salt spray chamber (40L, 1,0-2,0ml / 80cm² / h)

Lab Internal Dimension WxHxD(mm): 1600x500x1000

Lab External Dimension WxHxD(mm): 2480x1520x1450

Lab Temperature: Saline testing method(NSS ACSS)35°C±1°C/Corrosion-resistant testing method(CASS)50°C±1°C

Pressure Pot Temperature: Saline testing method(NSS ACSS)47°C±1°C/Corrosion-resistant testing method(CASS)63°C±1°C

Lab Capacity: 800L

Saline Tank Capacity: 40L

Saline Concentration: Sodium chloride solution with 5% concentration or 0.26g copper chloride is added to each liter of sodium chloride solution with 5% concentration

Compressed Air Pressure: 1.00±0.01kgf/cm²

Spray Volume: 1.0-2.0ml/80cm²/h( at least collecting 16 hours and take the average value)

Relative Humidity In The Lab: Above 85%

PH Value: 6.5-7.2  3.0-3.2

Spray Method: Programmable Spraying

Power: AC220V1Φ20A
