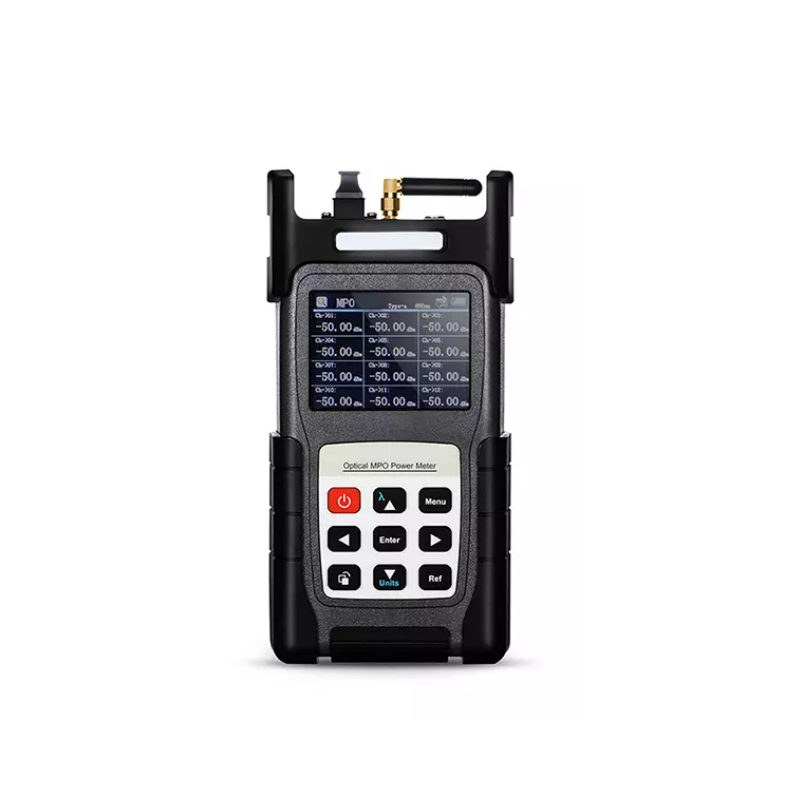

3S Telecom MPO-PMA & MPO-LSA Optical Power Meter (850～1700nm, 3～-50dBm)

MPO Laser Source Specification (MPO-LSA)

Laser Type: FP LD

Wavelength: 850/1300nm or 1310/1550nm

Frequency: 0Hz//270Hz/1KHz/2KHz

Fiber Type: 9/125 or 50/125 or 62.5/125

Interface Type: SM/MM MPO/PC 12 or 24 pins female

Output Power: > -10dBm

Stability: ±0.2(15min.) ±0.5(8hours)

MPO Power Meter Specification (MPO-PMA)

Detector: InGaAs

Wavelength Range: 850～1700nm

Calibration Wavelength: 850/1300 or 1310/1550nm

Optical Power Meter Range: +3～-50 dBm

Insertion Loss Accuracy: < 0.2s/channel

Resolution: 0.01dB

Linearity: ±0.2dB (+5～-50dBm)

System Control: USB

Interface Type: SM/MM MPO/PC 12 or 24 pins female

Common indicator

Working Temperature: -5℃～+40℃

Working Temperature: -5℃～+40℃

Continuons Working Hours: ＞10h

Weight: ＜850g

Channels: 12, 24 or Customized

Outline Dimension: 220 x 110 x 70mm
