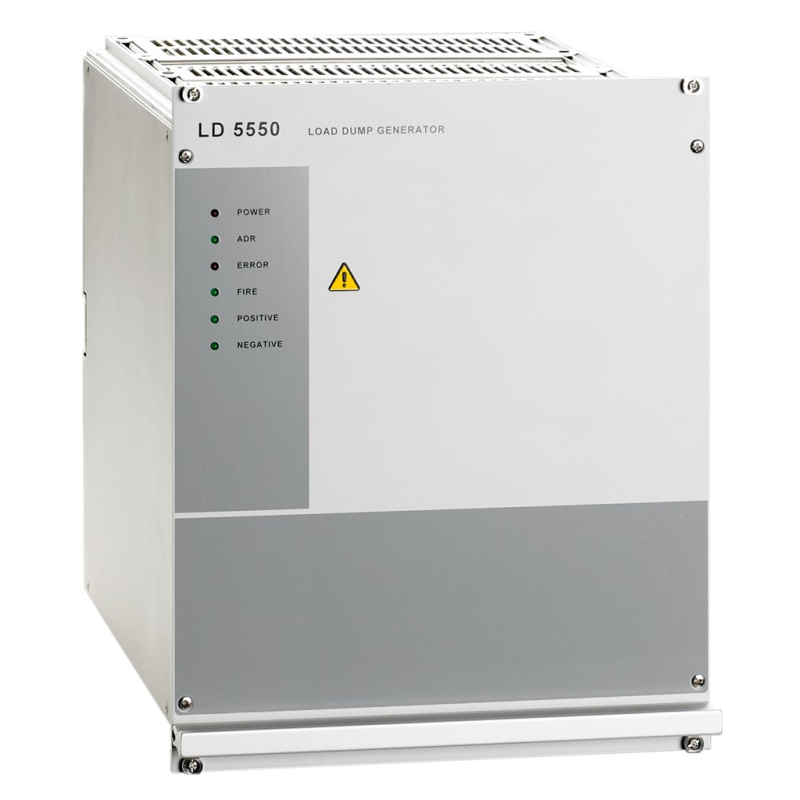

AMETEK CTS LD 5550 Load Dump Generator (20 ... 1500 ms ±10%)

Pulse amplitude: 20 ... 200 V ± 5 % in 0.1 V steps

Clamping voltage: 10 ... 100 ± 5%

Pulse impedance: 0.5 ... 10 Ω in 0.25 Ω steps / 30.5 Ω / 40 Ω ± 10%

Pulse rise time:

0.5 ... 10 ms 0.01 ms steps

< 0.5 ms (± 10% + 50µs)

≥ 50V amplitude ± 10%

< 50V amplitude ± 20%

Pulse duration time: 20 ... 1500 ms ±10% in 0.1 ms steps

Pulse repetition time: 15 ... 600 s in 0.1 s steps *

Polarity: positive

Pulse modes single, continuous, programmed: 1 ... 9'999

* Possible pulse repetition time depends on pulse energy
