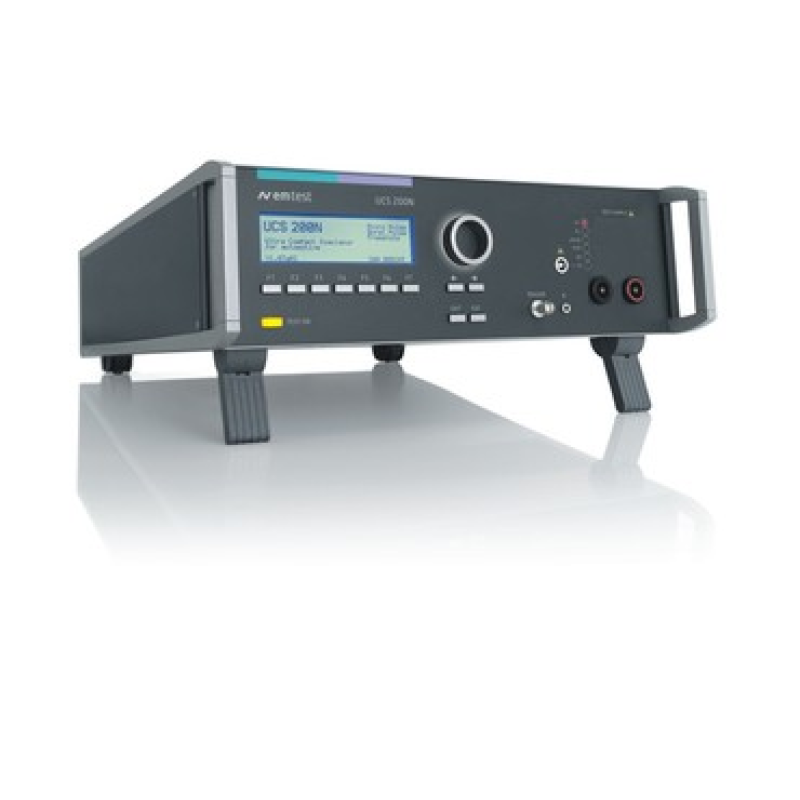

AMETEK CTS UCS 200N100.2 Ultra Compact Simulator (+80 VDC / 100 A)

DUT supply voltage: +80 VDC

DUT supply current: 100 A continuous

Inrush current: 150 A @ 500 ms

Overcurrent protection: Yes

Inputs: +/- VDS-IN; +/- AUX-IN

Outputs:

+/- Test supply OUT

Coaxial output for ISO 7637-3 testing

Remote interfaces: GPIB / USB

Other interfaces: D-sub connector, control for LD 200N

Triggers: 1 x Trigger OUT, 1 x Trigger IN

Ext. impedance: YES, 10 Ω minimum setting at the generator + external impedance value (only for micro pulses)

Safety: Safety circuit, Warning lamp

Dimension: 19" / 6 HU, 449 x 287 x 557 mm

Weigth: 29.2 kg

Power main supply: 115 / 230 VAC +10/- 15 % ; 50 - 60 Hz

Fusage :2 x 2 AT (230 VAC) / 2 x 4 AT (115 VAC)

Temperature: 10 ... 35 °C

Humidity: 30 ... 75 %, non condensing

Athmospheric pressure: 860 ... 1060 mbar

Main features

Built-in EFT / Burst generator module

Built-in Micropulse generator module (ISO 7637, JASO, SAE and many more)

Built-in coupling network 80 VDC, up to 200 A

Built-in battery switch

Overcurrent protection

Front panel operation and remote control possible
