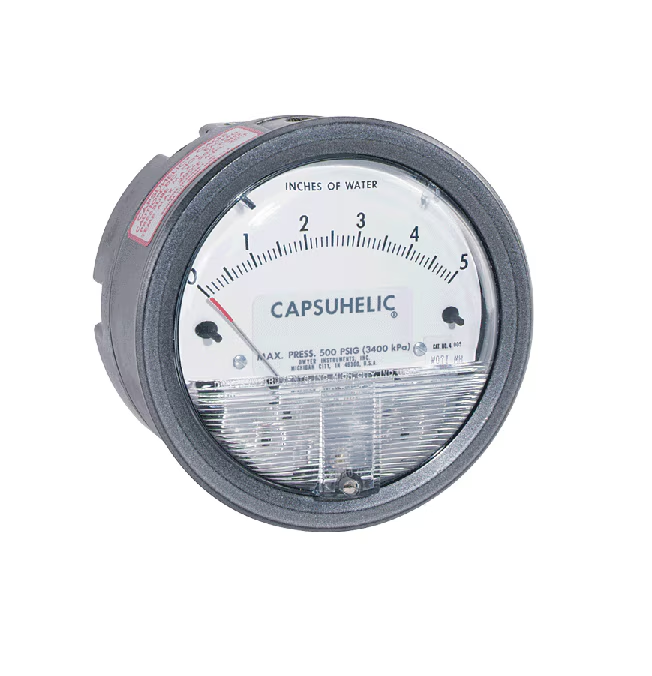

Dwyer 4205 Differential Pressure Gage (Differential; 1/4" NPT Female; 0 to 5 psi; ±3%)

Pressure Type: Differential

Pressure Port Size: 1/4" NPT Female

Pressure Range: 0 to 5 psi

Accuracy Value: ±3%

Accuracy Class: > 0.25%

Dial Size: 5"

Service: Aluminum case: Air and compatible gases and oil based liquids; Brass case: Air and compatible gases and water based liquids.

Wetted Materials: Consult factory.

Housing: Die cast aluminum with impregnated hard coating, standard. Optional forged brass housing is required for water or water based fluids. Special material diaphragms available, contact factory.

Accuracy: ±3% of FS at 70°F (21.1°C). (±4% on 4200. 4210. 4215, 4220. 4300. 4400. and 4500).

Pressure Limits: -20˝ Hg to 500 psig (-0.677 bar to 34.4 bar).

Temperature Limits: 20 to 200°F (-6.67 to 93.3°C).

Size: 4˝ (101.6 mm) diameter dial face.

Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.

Process Connections: 1/4˝ female NPT high and low pressure taps, duplicated -one pair top for air and gas, and one pair bottom for liquids.

Weight: 3 lb, 3 oz (1.45 kg) aluminum case; 7 lb, 13 oz (3.54 kg) brass case.

See more detail information in the Datasheet
