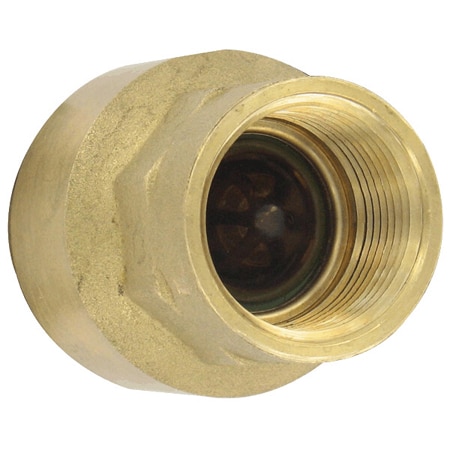

Dwyer BICV-0N00 Brass Inline Check Valves for Oils & Gases – 0.5 psi, Low Head Loss (1/4 in, NPT Female)
Manufacturer: Dwyer Model: BICV-0N00 - Contact
Weight: 3.5 oz
Cv Factor: 4.55 gal/min
Form factor: 1-Piece
Pressure Note: 1/4˝ to 2˝: 400 psi (27.6 bar) WOG; 2 1/2˝ to 4˝: 175 psi (12.1 bar) WOG; All sizes: 125 psi (8.6 bar) SWP
Pressure Limits: Up to 400 psi
Materials, Wetted: 300 Stainless Steel, Brass, Buna-N (NBR), Polyethermide
Media Compatibility: Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Process Connection Size: 1/4 in
Process Connection Type: NPT Female
Process Temperature, Max: 352 °F
Process Temperature, Min: 10 °F
