Test Function: Insulation resistance test, voltage test
Condition: 23°C±5°C,below 75%rh
Rated voltage (V): 00V, 250V, 500V, 1000V, 2500V, 5000V; Precision:±3%rdg±5dgt
Measuring voltage(V): Rated voltage×(1±10%)
Insulation Resistance Range(GΩ): 0.01MΩ~2000GΩ; Precision:±3%rdg±5dgt
Insulation Resistance Resolution: 0.01MΩ
DC voltage range: 0~1000V; Resolution 0.1V
AC voltage range: 0~750V; Resolution 0.1V
utput short circuit current: ≥5mA(5000V)
Absorption Ratio and Polarization Index Measurement: Have
Power Supply: 12V rechargeable battery
Backlight: Controllable gray screen backlight, suitable for use in dim places
Display mode: 4-bit large LCD display, gray screen backlight
LCD display size: 108mm×65mm
Instrument size: 227.2mm (L)×227.5mm (W)×153mm (H)
USB interface: With USB interface, software monitoring, storage data can be uploaded to the computer, save the print
Communication Line: USB communication line 1PC
Test Line: High voltage robs red 3meter, high voltage test line black 1.5meter, green 1.5meter
Data Storage: 500 groups, "FULL" symbol indicates that storage is full
Data Review: Data review function: "READ" symbol display
Overflow Display: Exceed measurement range overflow function: “OL” symbol display
Alarm Function: Alarm when the measured value exceeds the alarm setting value
Power Consumption:
+ Standby: 30mA Max (backlight off)
+ Turn on backlight: 42mA Max
+ Measure:200mA Max (backlight off)
Instrument weight: 2350g (including battery)
Battery voltage: When the battery voltage is low, low battery symbol “ ” will display
Automatic shut-down: automatic shutdown after 15 minutes boot
Insulation Resistance: ≥50MΩ (between Measuring line and shell)
Pressure Resistance: AC3kV/50Hz 1min
Working Temperature and Humidity: -10℃~+50℃<85%RH
Storage Temperature and Humidity: -15℃~+55℃<90%RH
Suitable for Safety Regulations: IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54), Pollution grade 2, CAT III 300V
General Information:

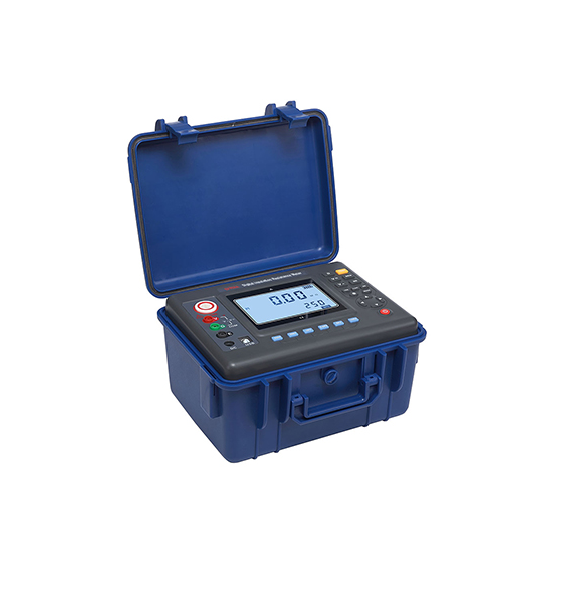

EPR50A Digital insulation resistance meter also known as megohmmeter,high voltage insulation resistance tester, etc., for the insulationresistance test. The instrument has a large LCD screen gray backlit display,data storage, data access, alarm, automatic shutdown and other functions. Atthe same time, it also has the function of measuring AC voltage absorptionratio and polarization index of DC voltage. The machine is beautiful andupscale, has a wide range, high resolution, convenient operation, easy tocarry, accurate, reliable, stable performance, strong anti-interference ability.
EPR50A has a shockproof, dustproof, moisture-proof structureand is a commonly used and indispensable instrument for telecommunications, electricity, meteorology, computer rooms, oil fields, electromechanical installationand maintenance, and industrial enterprises that use electricity as industrialpower or energy. It is suitable for measuring the resistance value of variousinsulating materials and the insulation resistance of transformers, motors,cables and electrical equipment.
EPR50A Digital insulation resistance meter consists of medium and large-scale integrated circuits. This meter has high output power and many output voltages levels (there are 6 voltage levels). The rated insulation testvoltage range is 250V ~ 5kV, and the insulation resistance measurement range is 0.01MΩ ~ 2000GΩ. DC voltage measurement range is 0 ~1000V, AC voltage measurement range is 0 ~ 750V.
