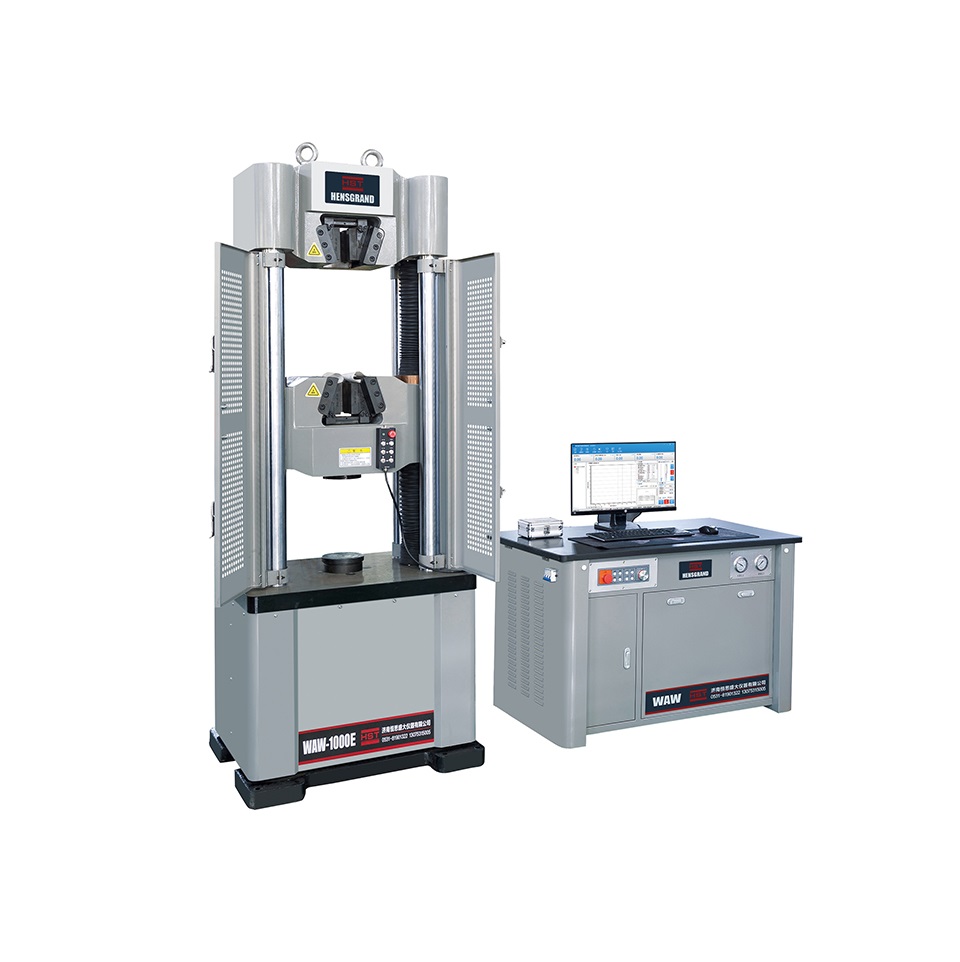

HST WAW-1000D Computer Control Electro-hydraulic Servo Universal Testing Machine (1000kN, AC380V)

Structure: 4 columns and 2 screws

Control way: Constant stress uniform deformation constant displacement three closed loop control and program control dealing

Max.load (kN): 1000kN

Load accuracy: ≤±1%

Load range: 2%-100%FS

Load resolution: 1/300000

Deformation Measurement Range: 2%～100%FS

Deformation accuracy: ≤±1%

Displacement resolution (mm): 0.01

Displacement error: ≤±0.5%

Max.piston stroke (mm): 250

Max piston moving speed: 0-90mm/min stepless speed adjusting

Crosshead lifting speed: 200mm/min

Max. tension test space: 980mm/1350(PC strand)

Max.Compression Test Space: 700/1000mm

Column Effective Spacing (mm): 650

Clamping method: Hydraulic clamp

Round specimen clamping range (mm): Φ13-Φ26,Φ26-Φ45 (6-13 Optional); Φ9.5-Φ21.6 (PC strand)

Flat specimen clamping range (mm) 0-20 (20-40 Optional)

Flat specimen clamping width(mm): 100

Compression plate size (mm): φ160

Bending roller distance(mm): 450

Width of bending rollers (mm): 120

Power supply: 3-phase,AC380V, 50Hz (can be customized)
