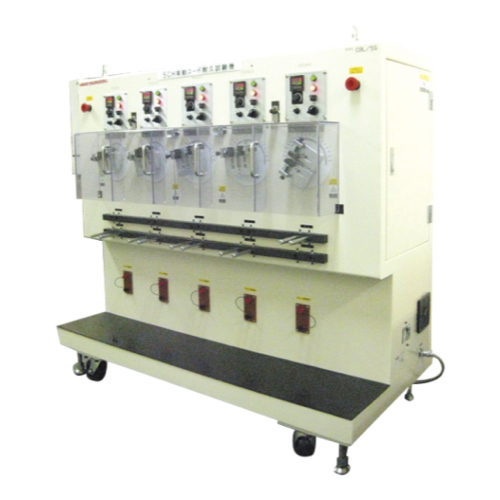

Aikoh CBL/5S Cable Flexing Endurance Tester (±60 deg, 120 times/min)

Major application: Endurance test of cords, cables, tubes, etc.

Standard: Compliant with JIS C 8306 and UL 817

Preset count: 999999 (×10)

Flexing speed: 120 times/min. (maximum) (JIS)

Rotating speed: 60 turns/min. (maximum)

Test flexing angle: ±60 degrees (JIS)

Steady brace location: 300mm (JIS）

Steady brace span: 40mm (JIS）

Weight location: Not specified (JIS)

Weight: As per request (JIS)

Wire flexing diameter: As per request (JIS)

Dimensions: W1400 x D720 x H1296 mm (5CH type)

Mass: Approx. 370 kg (5CH type)

Power supply: Single phase, 100 VAC

Standard set: Tester, weight with hook (100 g) x 5 pieces

Options: Weight, safety cover, jig/fixture
