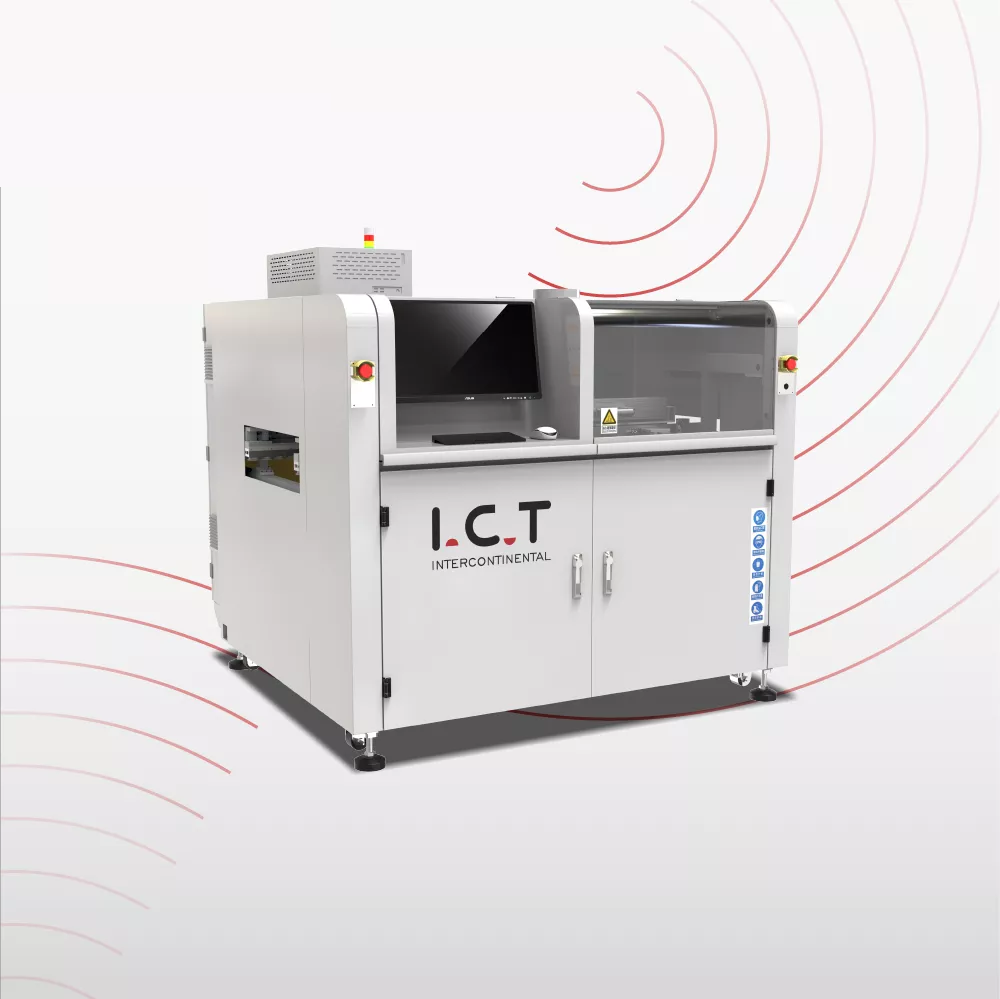

On-line Modular: Spray + Preheating & Soldering
Soldering System:
Nozzle Quantity: 1
Solder Pot Quantity: 1 set
Double Pot (Option): N/A
Solder Pot Power: 2.35kw
Flux System:
Flux Storage Tank: 1L
Flux Support: Flux Alarm, Automatic
Spray Nozzle: Germany Jet Valve (Spot and line spraying) 1 set
Spray Nozzle Size: 130um (180um, 210um Option)
Spray Speed: 0~20mm/s
Spray Nozzle Move Speed: 0~400mm/s
Preheating System:
Preheating Mode: Hot air and IR
Preheating Area: L500*W500mm
Preheating Zone: Top hot air: 2, Bottom IR: 1
Bottom Preheating Power: Max.12kw
Top Preheating Power: Max.6kw
Warm-up Time: Approx.15min (setting 150℃)
Control Mode: PC+PLC
Transport System:
PCB Size (with fixture): 120*60~500*500mm
PCB Replacement: Online
PCB Top Clearance: 120mm
Transport Height: 900±20mm
Transport Width: 60~500mm
Dimension：mm: L1850*W1850*H1480
Weight Approx: 800kg
