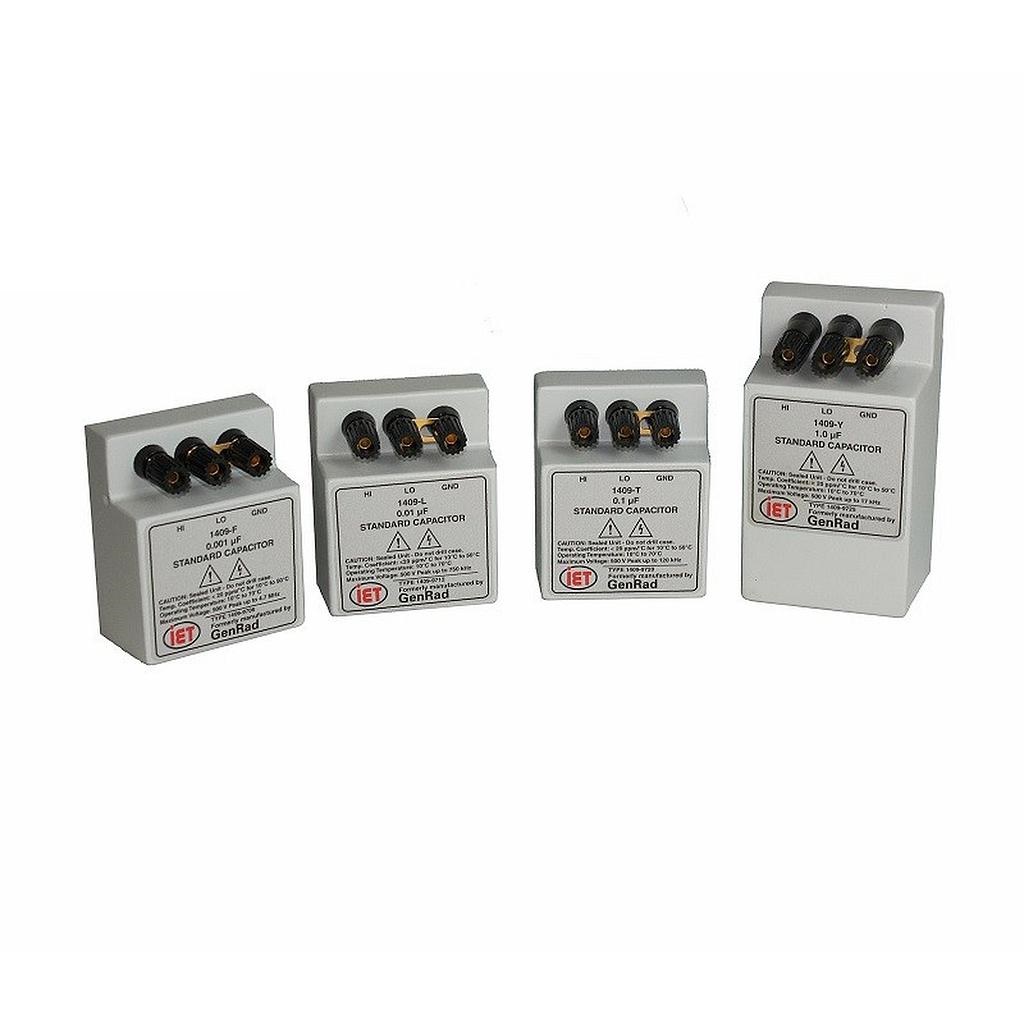

IETLAB GenRad 1409 Series Standard Capacitor (0.001 µF (100 nF) to 1000 µF)

Manufacturer: IET LABS
Model: GenRad 1404 Series
Origin: USA
Guarantee: 12 Month
Contact
- Request a Quotation
Contact us for the best price

Myanmar: 09 266993007 / 09 266993008

Email: info@emin.com.mm

Specifications
Manufacturer Info

(Full specifications can be found on datasheet)

Values 0.001 µF (100 nF) to 1000 µF
Stability as good as ±0.01 %/year
Two-to-five terminal configuration, depending on model
Calibration accredited to ISO-17025 included

Details

datasheet

manual

BASIC SPECIFICATIONS
Calibration: A certificate of calibration that is accredited by A2LA to ISO-17025 is provided with each unit,

Calibration and Test Conditions: Calibrated at 23°C, <50% RH, Traceable to SI 1 nF - 1 μF: Units are calibrated as both 2-terminal and as 3-terminal capacitors. For 2-terminal measurements, the LO terminal is shorted to the GND terminal. The Adjustments to Nominal specified in the table above apply to 2-terminal measurements. 10 μF - 1000 μF: Units are calibrated as 5-terminal capacitors, "series model"

Nominal value	Model	Adjustment to nominal	Temperature coefficient(ppm/°C)	Calibration frequency	Dissipation(typical)	Stability (per year)	Terminals	Capacitor type
1 nF	1409-F	±0.02%	20	1 kHz	0.0003	±100 ppm	2 bp's + gnd	Silvered Mica mechanically stabilized hermetically sealed
10 nF	1409-L	±0.02%	20	1 kHz	0.0003	±100 ppm
100 nF	1409-T	±0.02%	20	1 kHz	0.0003	±100 ppm
1 µF	1409-Y	±0.02%	20	1 kHz	0.0002	±100 ppm
10 µF	1409-10µF	±0.04%	±50	100 Hz	0.0005	±200 ppm	4 bp's + gnd	Metallized Polypropylene Sulfide (MPPS) hermetically sealed
100 µF	1409-100µF	±0.05%	±50	100 Hz	0.001	±500 ppm
1,000 µF	1409-1000µF	±0.4%	-150	100 Hz	0.001	±500 ppm
