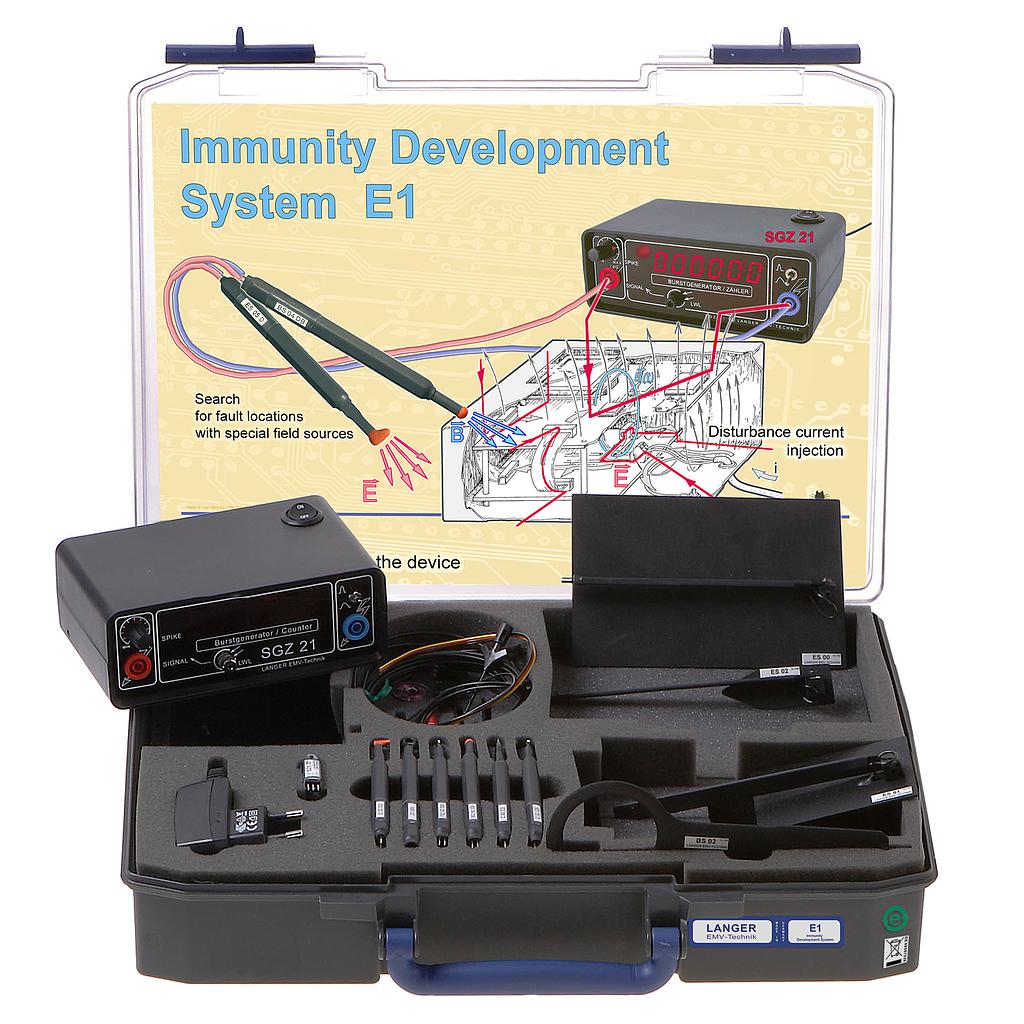

LANGER EMV-Technik E1 set Immunity Development System
Manufacturer: LANGER EMV-Technik Model: E1 set - Contact
Technical parameters
S21 optical sensor
Transmission range DC...10 Mbps
Optical fibre connector 2.2 mm Ø
Supply voltage (3-5) V
Current input 10 mA
SGZ 21 burst Generator
Pulse parameter
Rise time ca. 2 ns
Tail time ca. 10 ns
Peak values ca. 0...1500 V
Optical input
Optical fiber 2.2 mm
Max. frequency 5 MHz
Min. pulse width 100 ns
Supply voltage 12 V / 200 mA
Sizes (L x W x H) (154 x 100 x 62) mm
Scope of delivery
1x SGZ 21, Burst Generator
1x S21, Optical Sensor (10 Mbps)
1x BS 02, Magnetic Field Source
1x BS 04DB, Magnetic Field Source
1x BS 05D, Magnetic Field Source
1x BS 05DU, Magnetic Field Source
1x ES 00, E-Field Source
1x ES 01, E-Field Source
1x ES 02, E-Field Source
1x ES 05D, E-Field Source
1x ES 08D, E-Field Source
1x MS 02, Magnetic Field Probe
1x E1 acc, Accessories
1xNT FRI EU, Power Supply Unit
1xE1 case, System Case
1xE1 m, E1 Set User Manual
Short description
The E1 is a set of EMC tools used for EMI suppression in printed circuit boards during the development phase. The developer can use the E1 set to quickly identify the causes of burst and ESD interference. This allows the developer to design suitable measures to solve the causes of the interference. It can also be used to test the effectiveness of the measures taken. The E1 test set-up is small and fits easily on a developer’s desk. The E1 set user manual describes EMC mechanisms and provides detailed descriptions of basic measuring strategies for interference suppression in printed circuit boards. The E1 set includes a generator to generate burst and ESD disturbances.
