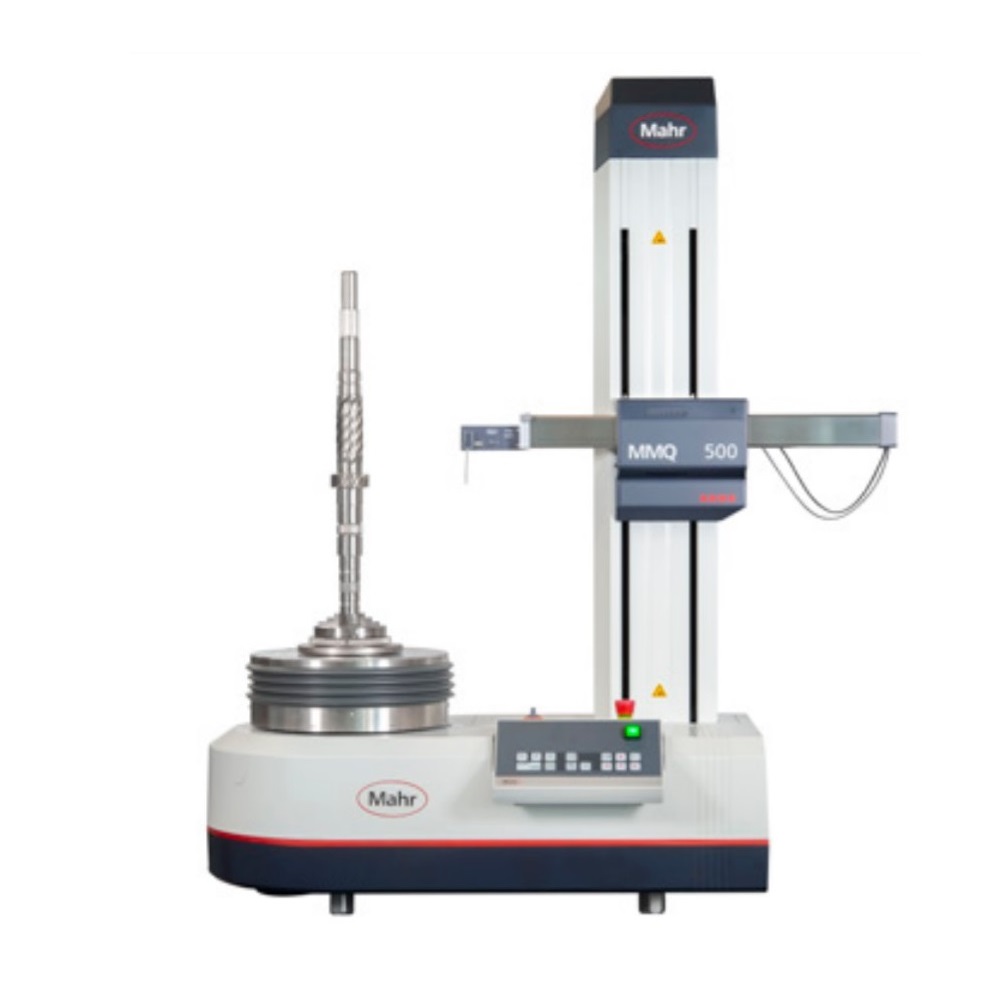

Mahr MMQ 500 High Precise Universal Form Measuring Machine (530mm)

Diameter max. [mm]: 530

Straightness deviation / 200 mm measuring path (µm), X-axis: 0.600000

Measuring path Z (mm): 470

Roundness deviation (µm+µm/mm measuring height): 0,02 + 0,00025

Roundness deviation (µm+µm/mm measuring height): 0,01 + 0,000125

Axial runout deviation (µm+µm/mm measuring radius): 0,04 + 0,0002

Axial runout deviation (µm+µm/mm measuring radius): 0,02 + 0,0001

Centering and tilting table: automatic

Table diameter: 300

Table load capacity, centered (N): 800

Straightness deviation / total measuring path (µm), Z axis: 0.3

Parallelism deviation Z-/C axis in tracing direction, measuring path (µm): 0.6

Measuring speed (mm/s), Z axis: 100

Positioning path (mm), X axis: 280
