Suction rate: 320 l/min / 85 gal/h
Filling capacity: 250 l/min / 8.8 cfm
Effective delivery volume (at 80% max. pressure): 220 l/min / 7.8 cfm
Maximum pressure: 10 bar / 145 psi
Rated input power: 2.2 kW / 3 HP
Maximum speed: 1350 rpm
Tank capacity: 50 l / 13.2 gal
Sound pressure level (LpA): 86 dB(A)
Sound power level (LwA): 93 dB(A)
Dimensions: 880 x 490 x 780 mm / 2.9 x 1.6 x 2.6 ft
Weight: 52 kg / 115 lbs
Cable length: 1.5 m / 5 ft
Noise emission
Sound pressure level: 86 dB(A)
Sound power level (LwA): 93 dB(A)
Delivery
2 x Universal couplings
Accessories
COMPRESSED AIR
Accessories for compressors, Compressed air preparation, Accessories for compressed air tools
OTHER ACCESSORIES
Occupational safety
Datasheet
Features

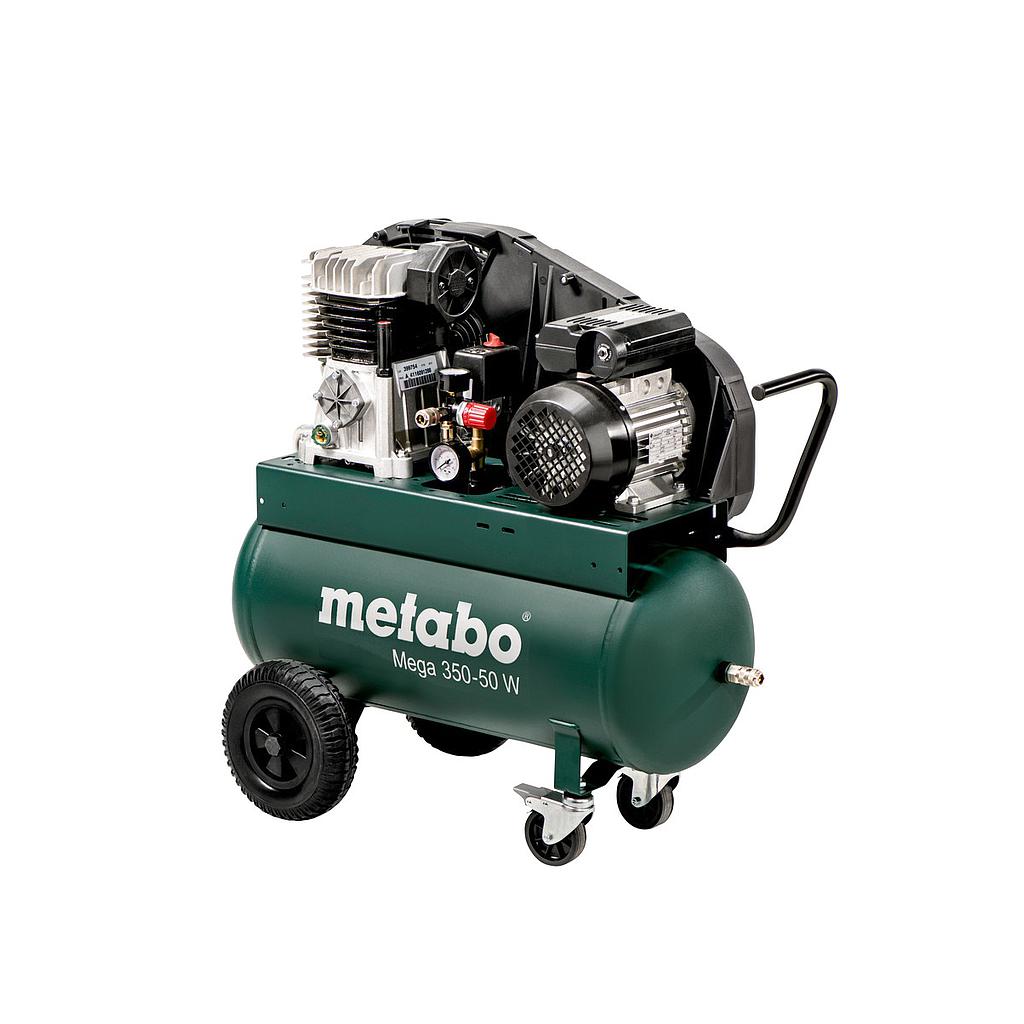

More powerful and robust V-belt compressor for demanding use
Belt drive for low speeds and a particularly quiet operation
Oil-lubricated Piston Condenser
For single phase alternating current
Operating pressure can be regulated according to application by means of a pressure reducer and manometer
Convenient pressure switch for good cold starting, complete with relief valve
Additional manometer for displaying the tank pressure
Overload protection: protects the motor from overheating
Rubberised feet for optimum stability
Rubberised, stable wheels and pull handle for mobile use
10 year tank warranty against rust
