Supports Scripting: Yes
Bus Connector: PXI Hybrid
Maximum Bandwidth: 80 MHz
Maximum Update Rate: 200 MS/s
Analog Output Resolution: 16 bits
Analog Output Voltage Range: -6 V to 6 V
Analog Output Onboard Memory Size: 512 MB
Number of Output Channels: 1
Supports Arbitrary Waveforms: Yes
RF Signal Generation: No
Supports Digital Upconversion: No

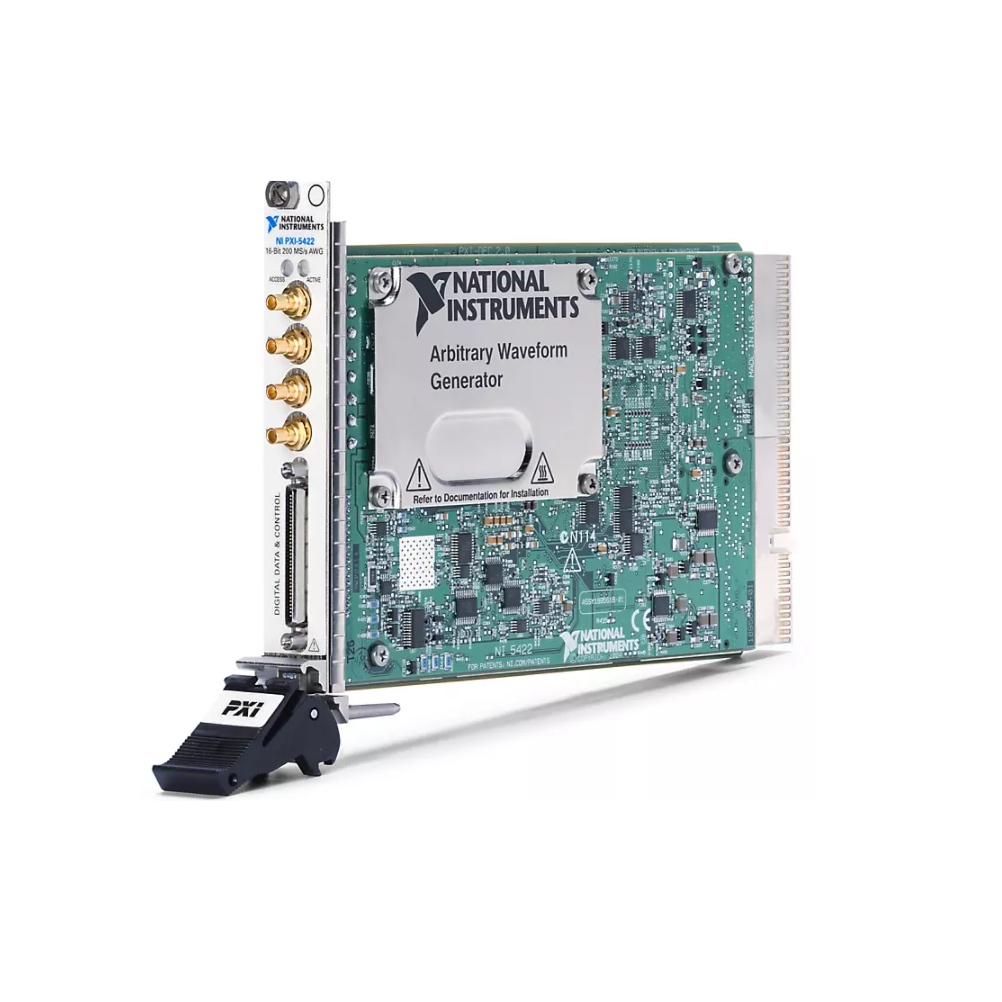

Generates standard functions and user-defined, arbitrary waveforms as part of a PXI system.
PXI Waveform Generators can produce precise waveforms including sine, square, triangle, and ramp as well as arbitrary, user-defined waveforms using sequences of data or streaming continuously from a host or peer-to-peer instrument within the PXI system. These instruments are ideal for tightly synchronized, mixed-signal test systems in scientific research or test of semiconductor devices, consumer electronics, automotive, and aerospace/defense.
Datasheet
