NI PXIe-2727 PXI Programmable Resistor Module (9 Channels, 16 kΩ) | EMIN.COM.MM

Switches (NI)
NI PXIe-2727 PXI Programmable Resistor Module (9 Channels, 16 kΩ)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

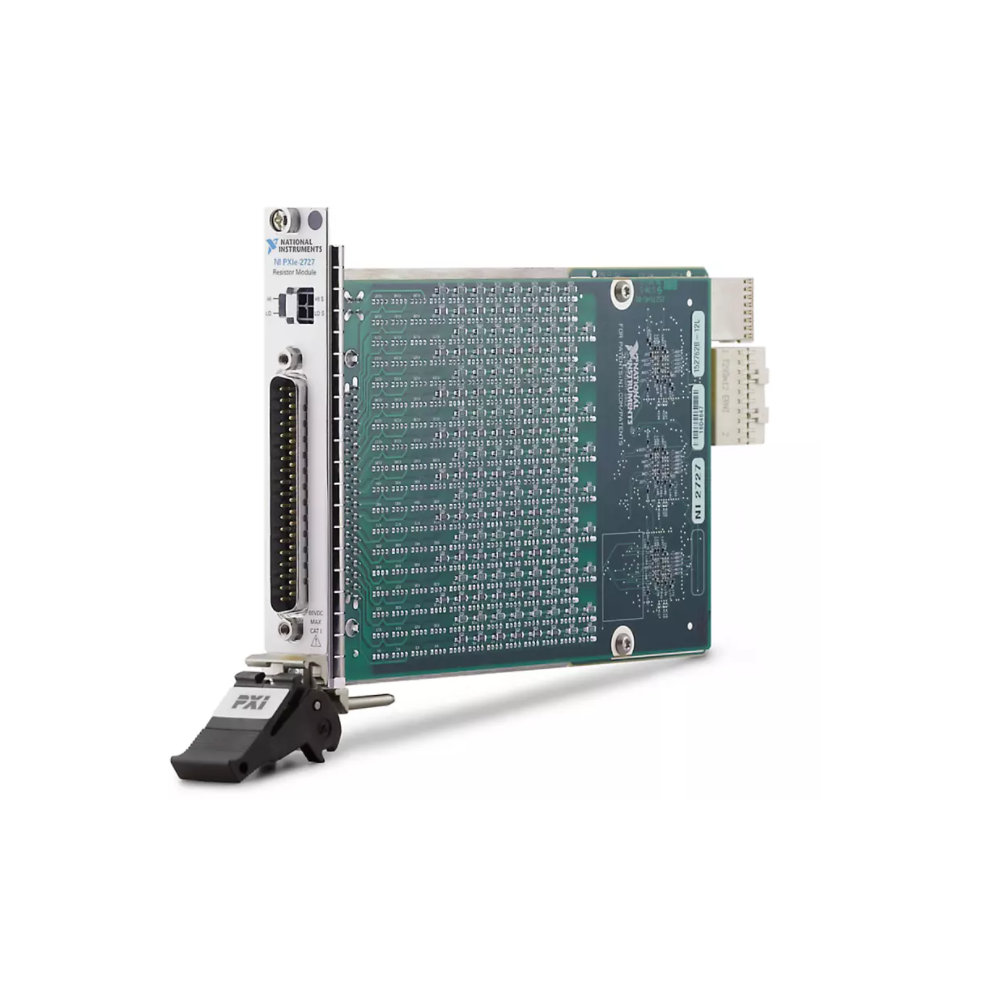

Product image

NI PXIe-2727 PXI Programmable Resistor Module (9 Channels, 16 kΩ)

ManufacturerNI(View more products from this manufacturer)

ModelPXIe-2727

P/N781986-27

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Bus Connector: PXIe

Maximum Resistance: 16 kOhm

Resistance Resolution: 0.25 Ohm

Number of Resistor Channels: 9

Replicates the behavior of resistance‐based devices by controlling a series of relays that varies resistance across each I/O connector channel.

PXI Programmable Resistor Modules are well‐suited for simulating environmental conditions in hardware‐in‐the‐loop (HIL) validation. The software included provides a simple user interface that accepts inputs in units of temperature or resistance, and configures the resistance across each channel. Each module uses a 37‐pin D‐SUB connector on the front panel, as well as a 2x2 Micro‐Fit connector for easy connection to a PXI Digital Multimeter (DMM).

Datasheet
