Ethernet Bandwidth: 1 Gbits/s
Number of Ethernet Ports: 4
Gigabit Ethernet Interface
Standard: IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T
Number of ports: 4
Interface: RJ45
Speed: 10 Mbps, 100 Mbps, 1000 Mbps
Bus Interface
Form factor: PXI Express Gen-2 x4
Slot compatibility: x4, x8, and x16 PXI Express or PXI Express hybrid slots
Power Requirements
Power requirements are dependent on your application.
+3.3 V 3 A
+12 V 0.5 A
Physical Characteristics
Dimensions (not including connectors): 21.6 cm x 2.0 cm x 13.0 cm (8.5 in. x 0.8 in. x 5.1 in.); 3U, one-slot PXI Express module
Weight: 153 g (5.4 oz)
I/O Connectors
Connector: Type RJ45
LED indicators
Ethernet: 1 Link/Activity LED and 1 Link Speed LED for each port
Enables Ethernet-based communication between PXI hardware and external instruments and devices and supports GigE Vision cameras without power over Ethernet (PoE).

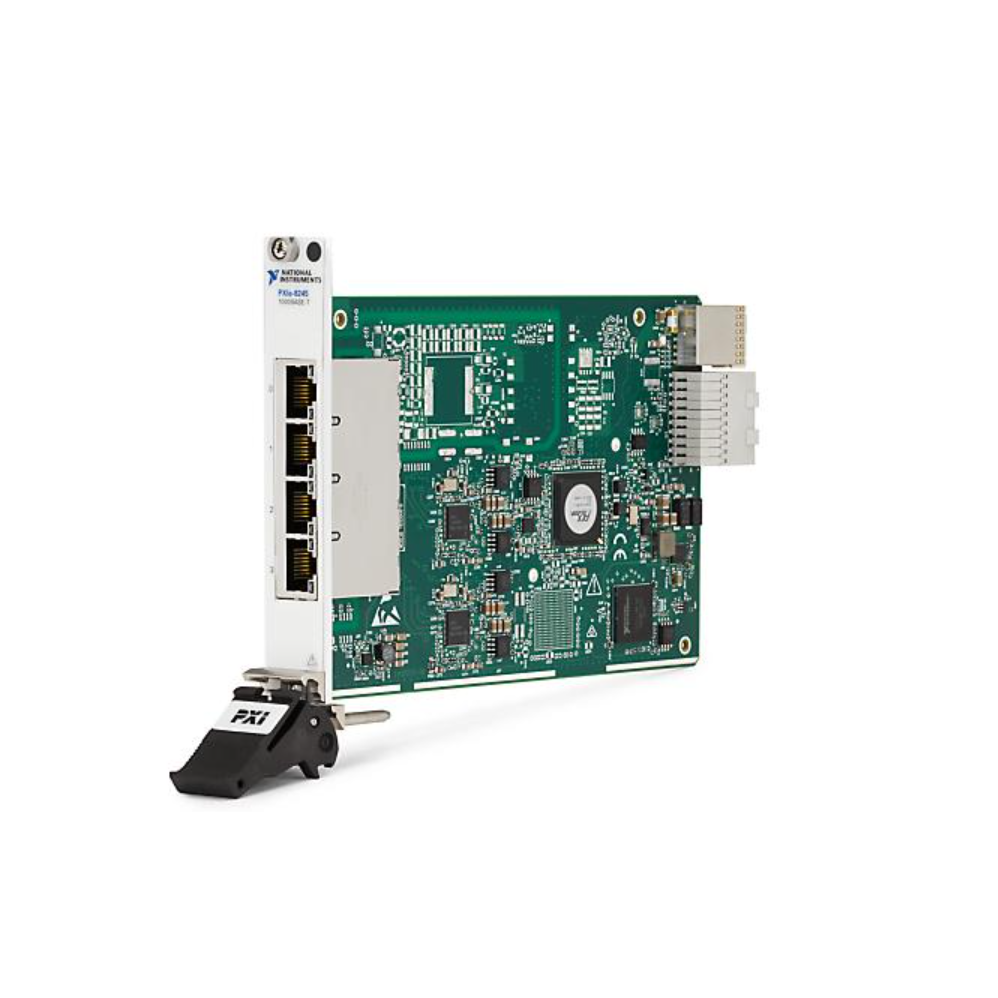

The PXI Ethernet Interface Module equips PXI systems with high-bandwidth Ethernet-based connectivity with up to 40 Gb/s data rates per port. Featuring compatibility with industry-standard network and automatic cable polarity detection, this module is ideal for high-performance data transfer and vision applications on the PXI platform. These modules have independent bandwidth to support up to four GigE Vision cameras without PoE.
