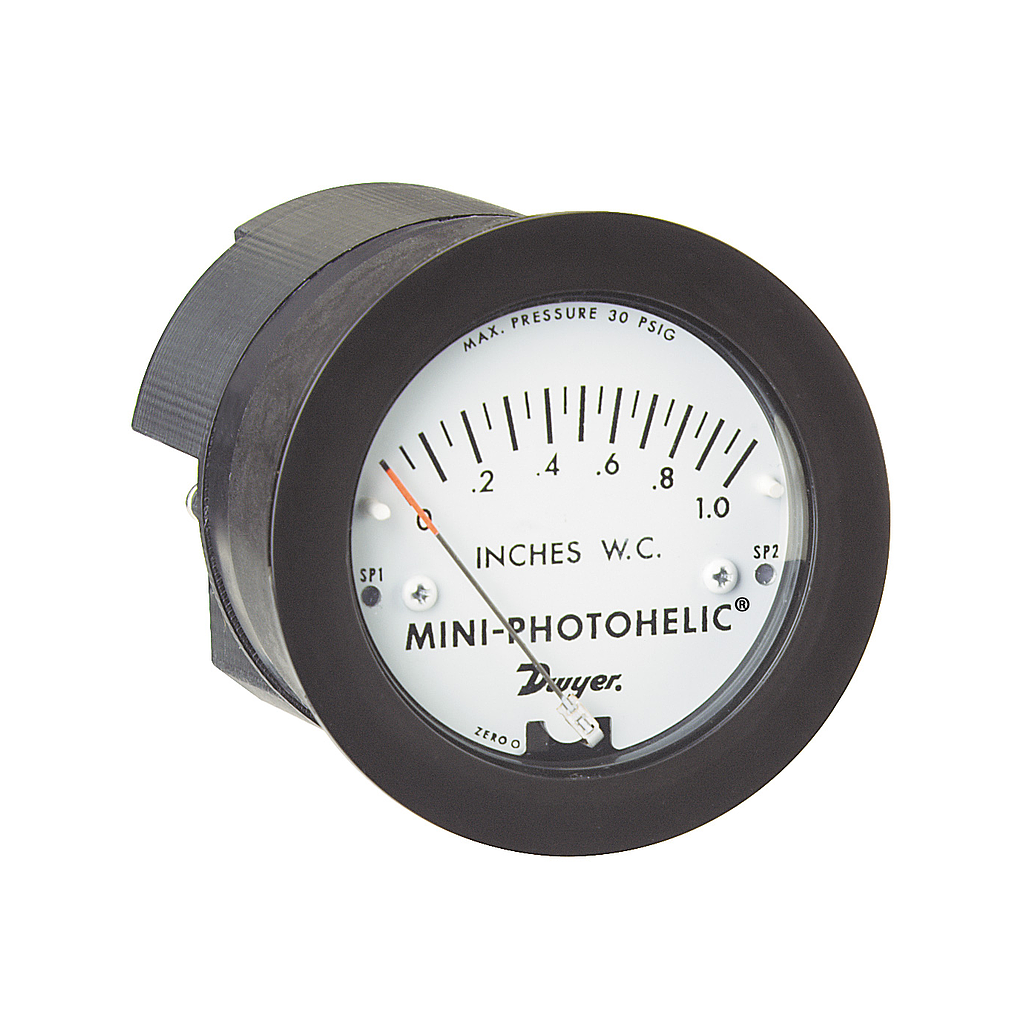

OMEGA MP-010 Differential pressure switch/gage (Differential; 0 to 10 inH2O; 3/16" Barbed; ±5%)

Pressure Type: Differential

Pressure Port Size: 3/16" Barbed

Accuracy Value: ±5%

Accuracy Class: > 0.25%

Dial Size: 3"

Pressure Range: 0 to 10 inH2O

Alarm Types (DC/AC): SPDT 5A - 120/240 VAC

GAGE SPECIFICATIONS

Service: Air and non-combustible, compatible gases.

Wetted Materials: Consult factory.

Accuracy: ±5% of FS @ 70ºF (21.1ºC). Gage face mounted in vertical position.

Pressure Limits: 30 psig (2.067 bar).

Temperature Limits: 20 to 120ºF (-6.7 to 49ºC).

Process Connections: Barbed for 3/16˝ ID tubing (STD); 1/8˝ male NPT (optional).

Size: 4-1/8˝ (104.78 mm) depth x 3-1/16˝ (77.79 mm) diameter.

Weight: 23 oz (652 g).

SWITCH SPECIFICATIONS

Switch Type: (2) SPDT relays.

Electrical Rating: 5 A @ 120/240 VAC resistive; 5 A @ 30 VDC.

Electrical Connections: Screw type terminal block. Accepts 22-12 AWG wire.

Power Requirements: 24 VDC / 24 VAC 50/60 Hz 4 watts.

Mounting Orientation: Gage face in vertical position.

Set Point Adjustment: Push-buttons.

Standard Accessories: (2 )mounting screws, (1) .050˝ hex allen wrench.

Compliance: CE, cULus.
