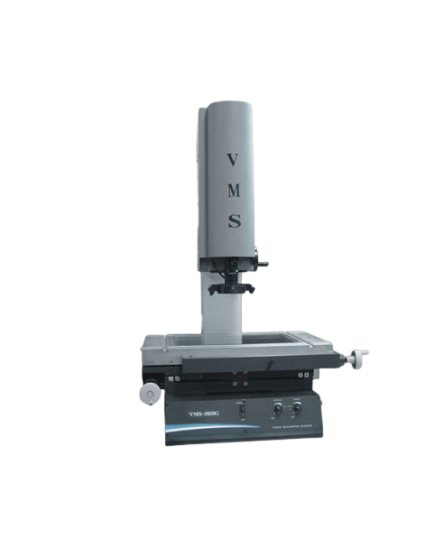

Rational VMS-3020F Manual Video Measuring System (X;Y: 300×200mm)
Manufacturer: Rational Model: VMS-3020F - Contact
Working table:
Metal table size (mm): 500×330
Travel (mm):300×200
Z-axis travel (mm): 200 (can be customized to 400)
Consistency error of origin in different sections: E0≤20 (every 100mm displacement in Z axis)
Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm):
Video system:
IP camera
Zoom lens magnification: 0.58X~7.5X
Magnification: 27.4~351.3X (24" monitor)
Object view: 14mm~1.4mm
Surface lighting and transmission lighting both adopt adjustable LED
Product brief:
Used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Features:
1. Various kinds of lighting - Meets various requirements for customers.
2. Data processing, data display, data input, and data output.
3. Pragmatic workpiece straightening feature.
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.
