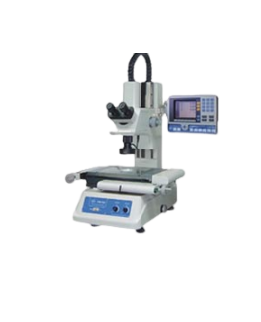

Rational VTM-1510G Tool Microscope (X: 150 Y: 100 Z:150mm)
Manufacturer: Rational Model: VTM-1510G - Contact
X-axis travel (mm): 150
Y-axis travel (mm): 100
Z-axis travel (mm): 150
Metal table size (mm): 354×228
Glass table size (mm): 210×160
Resolution (mm): 0.0005
Dimension (mm): 540×667×850
Weight (kg): 100
Eyepiece System:
Lens Magnification: 1X, 3 X (standard configuration), 5 X, 10X
Eyepiece Magnification: 10 X (the monocular and binocular are the same) (optional configuration)
Total Magnification: 10X ~100 X
Transmission Illumination: Halogen tungsten lamp (24V, 20W)
Reflective Illumination: 12V LED ring-shaped lamp (including laser indicator)
Indication error: X, Y ≦ (3+L/ 75) μm; Z ≦ (4+L/ 25) μm
Lens magnification error: ≦0.08% (including distortion)
Image system:
Lens Magnification: 1X, 3 X (standard configuration), 5 X, 10X
Eyepiece Magnification: 1/3”CCD
Total Magnification: 28.5 X ~285X (equipped with 19.5 inches display)
Product brief:
Widely used in manufacturing sectors like electronic components, precise mold, precise tool, spring, plastic, rubber, oil cut-off valve, camera parts, auto parts, PCB, tool Microscope is a high precision and high efficiency measuring instrument integrating optics, machinery, electronics and software. It is applied in 2D measurement as well as 3D aided measurement. The eyepiece standard film can be used as comparative measurement for pitch, external diameter, angle, and profile of screw, and for Dimension, length, and profile of cutting tool. It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Features:
Tool Microscope features multi-data measurement, magnification, display, input and output. It adopts exclusive measuring software, QMS3D-M, based on Windows OS. Thanks to its user-friendly human-computer interface, it is convenient for users to operate the system and do not need to design a scheduled program.
