Input voltage: AC 90V~240V
Power: Less than 15W
Input signal: Orthogonality TTL square wave; frequency＜2MHZ; electric current＞1mA
Resolution: 0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 20, 50
Weight: 2kg
Product brief:

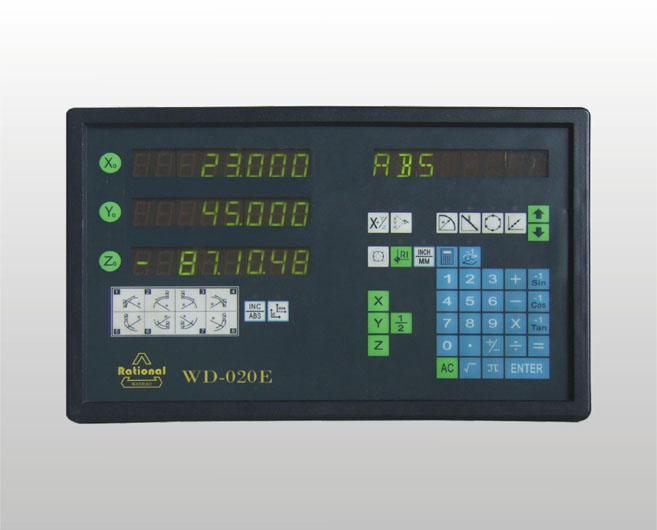

WD-020E differential signal DRO is widely used in various kinds of machine to carry out inspection and positioning.
Characteristics:
1. Adopts self-developed 24-bit IC and when resolution is 0.001mm, the speed of counter is 4m/s.
2. Wearproof alloy shell, which is elegant, and difficult to scratch.
3. Premium quality and durable panel, which is convenient to replace.
4. Anti-jamming capabilities of power supply and signal can be more than 2200V.
5. Recalls the last position after power failure without battery.
6. Output signal adopts differential port, which makes anti-jamming capability stronger, and makes count more stable.
7. Can be connected with linear scale or encoder to carry out processing and measuring for various kinds of machines.
8. Additional calculator feature.
9. Wide range of input voltage (AC90V～240V).
Features:
◆Zero clearing. ◆Numerical analysis.
◆Pre-sets value ◆Filters numerical value
◆Absolute coordinate / relative coordinate transfer. ◆Metric units / Imperial units transfer.
◆Diameter / semi-diameter can be selected. ◆Shrinkage rate.
◆Finds mechanical original point (RI). ◆Calculator.
◆Circular point hole. ◆Oblique line hole.
◆Arc processing. ◆Bevel processing.
◆Lathe ◆RS232 communication protocol (Optional configuration).
◆EDM output. ◆Edge finer (Optional configuration).
