Input voltage: DC 9V
Power: Less than 10W
Input signal: Orthogonality TTL square wave; frequency＜2MHZ; electric current＞1mA
Resolution: 0.1, 0.5, 1, 5, 10, 50
Weight: 1kg
Dimension: 104 x 77 x 31.5 (mm)
Product brief:

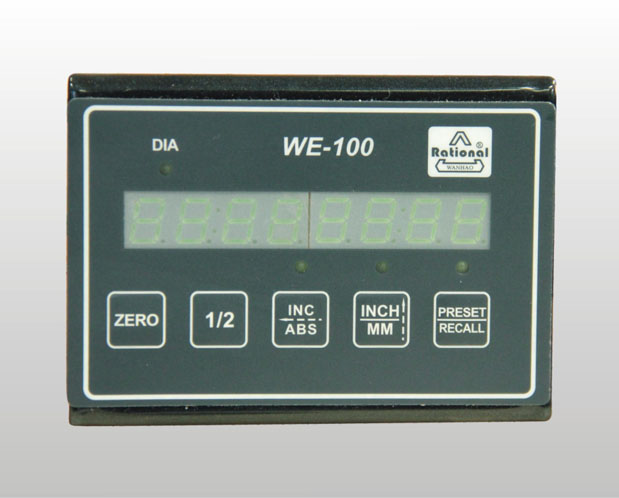

WE100 is suitable for single-axis displacement measurement. Coordinating with linear measuring system, this digital readout analyzes, processes and displays the data of displacement measurement.
Features:
1. Adopts self-developed 24-bit IC and when resolution is 0.001mm, the speed of counter is 4m/s.
2. HD nixie tube.
3. Premium quality and durable panel, which is convenient to replace.
4. Recalls the last position after power failure without battery.
5. Can be connected with linear scale or encoder to carry out processing and measuring for various kinds of machines.
6. Strong anti-jamming capability.
7. Small in size and light in weight.
8. Zero clearing.
9. Numerical analysis
10. Pre-sets /calls the numerical value.
11. Absolute coordinate / relative coordinate transfer.
12. Metric units / Imperial units transfer.
13. Diameter / semi-diameter can be selected.
14. Linear correction available.
15. RS-232 outputs the indication value of linear scale into PC.
