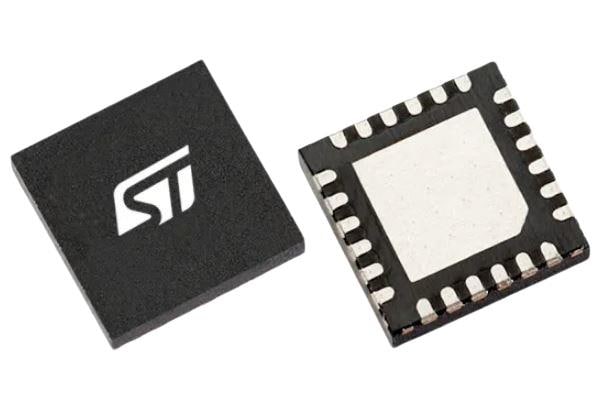

STMicroelectronics S2-LPCBQTR Sub-GHz Ultra-low power, high performance, sub-1GHz transceiver
Manufacturer: STMicroelectronics Model: S2-LPCBQTR - Contact
Technology: Si
Sensitivity: - 130 dBm
Unit Weight: 44 mg
Output Power: 16 dBm
Interface Type: SPI
Mounting Style: SMD/SMT
Frequency Range: 452 MHz to 527 MHz
Maximum Data Rate: 500 kbps
Modulation Format: 2-GFSK, 4-GFSK, ASK, OOK
Moisture Sensitive: Yes
Number of Receivers: 1 Receiver
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 1.8 V
Number of Transmitters: 1 Transmitter
Supply Current Receiving: 7.2 mA
Supply Current Transmitting: 27 mA
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
