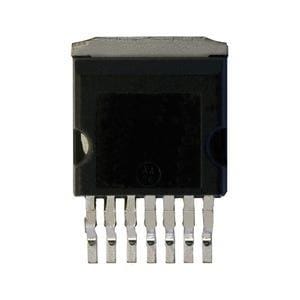

STMicroelectronics SCT027H65G3AG SiC MOSFETS Automotive-grade silicon carbide Power MOSFET 650 V, 29 mOhm typ., 60 A in an H2PAK-7 package

Fall Time: 11.2 ns

Rise Time: 11.7 ns

Technology: SiC

Channel Mode: Enhancement

Configuration: Single

Qualification: AEC-Q101

Mounting Style: SMD/SMT

Qg - Gate Charge: 48.6 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 300 W

Vgs - Gate-Source Voltage: - 10 V, + 22 V

Typical Turn-On Delay Time: 13.2 ns

Typical Turn-Off Delay Time: 25.6 ns

Id - Continuous Drain Current: 60 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 39.3 mOhms

Vds - Drain-Source Breakdown Voltage: 650 V

Vgs th - Gate-Source Threshold Voltage: 3 V
