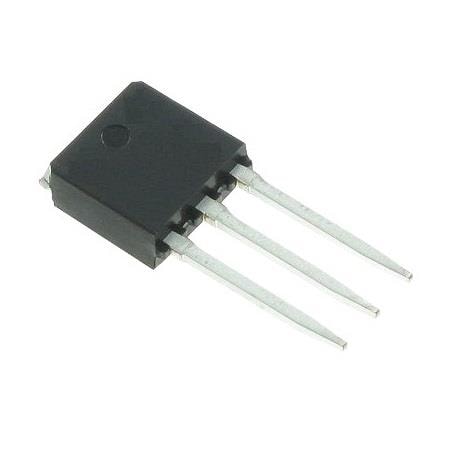

STMicroelectronics STD12NF06L-1 MOSFET N-Ch 60 Volt 12 Amp

Width: 2.4 mm

Height: 6.2 mm

Length: 6.6 mm

Fall Time: 13 ns

Rise Time: 35 ns

Technology: Si

Unit Weight: 340 mg

Channel Mode: Enhancement

Configuration: Single

Mounting Style: Through Hole

Transistor Type: 1 N-Channel

Qg - Gate Charge: 10 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 30 W

Vgs - Gate-Source Voltage: - 16 V, + 16 V

Typical Turn-On Delay Time: 10 ns

Typical Turn-Off Delay Time: 20 ns

Id - Continuous Drain Current: 12 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Forward Transconductance - Min: 7 S

Rds On - Drain-Source Resistance: 100 mOhms

Vds - Drain-Source Breakdown Voltage: 60 V

Vgs th - Gate-Source Threshold Voltage: 1 V
