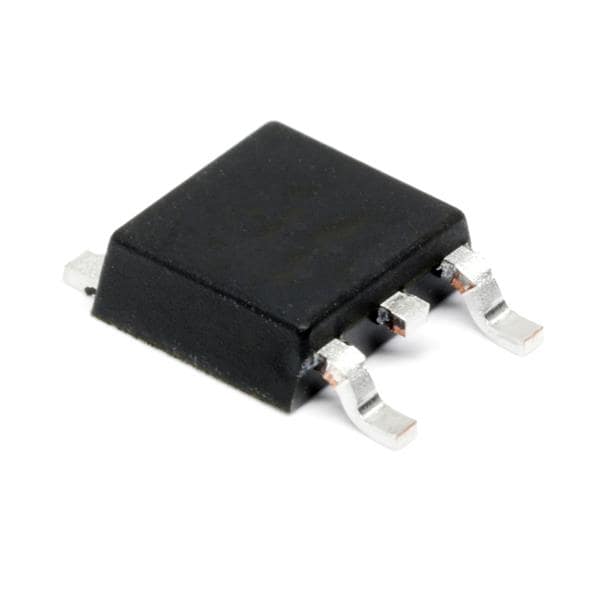

STMicroelectronics STD3N80K5 MOSFETs N-CH 800V 2.8Ohm typ 2.5A Zener-protecte

Fall Time: 25 ns

Rise Time: 7.5 ns

Technology: Si

Unit Weight: 330 mg

Channel Mode: Enhancement

Configuration: Single

Mounting Style: SMD/SMT

Transistor Type: 1 N-Channel

Qg - Gate Charge: 9.5 nC

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Pd - Power Dissipation: 60 W

Vgs - Gate-Source Voltage: - 30 V, + 30 V

Typical Turn-On Delay Time: 8.5 ns

Typical Turn-Off Delay Time: 20.5 ns

Id - Continuous Drain Current: 2.5 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 55 C

Rds On - Drain-Source Resistance: 2.8 Ohms

Vds - Drain-Source Breakdown Voltage: 800 V

Vgs th - Gate-Source Threshold Voltage: 4 V
