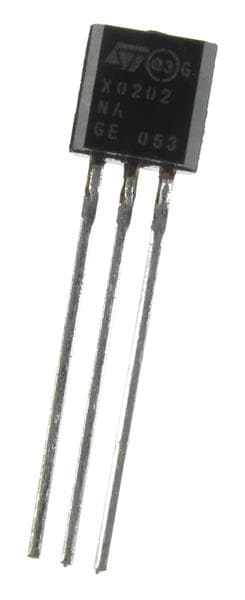

STMicroelectronics X0202NA 1BA2 1.25 A SCRs 1.25 Amp 800 Volt
Manufacturer: STMicroelectronics Model: X0202NA 1BA2 - Contact
Unit Weight: 453.600 mg
Current Rating: 1.25 A
Mounting Style: Through Hole
Vf - Forward Voltage: 1.45 V
Holding Current Ih Max: 5 mA
Gate Trigger Current - Igt: 200 uA
Gate Trigger Voltage - Vgt: 800 mV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Non Repetitive On-State Current: 25 A
Maximum Gate Peak Inverse Voltage: 8 V
Off-State Leakage Current @ VDRM IDRM: 5 uA
Rated Repetitive Off-State Voltage VDRM: 500 V
