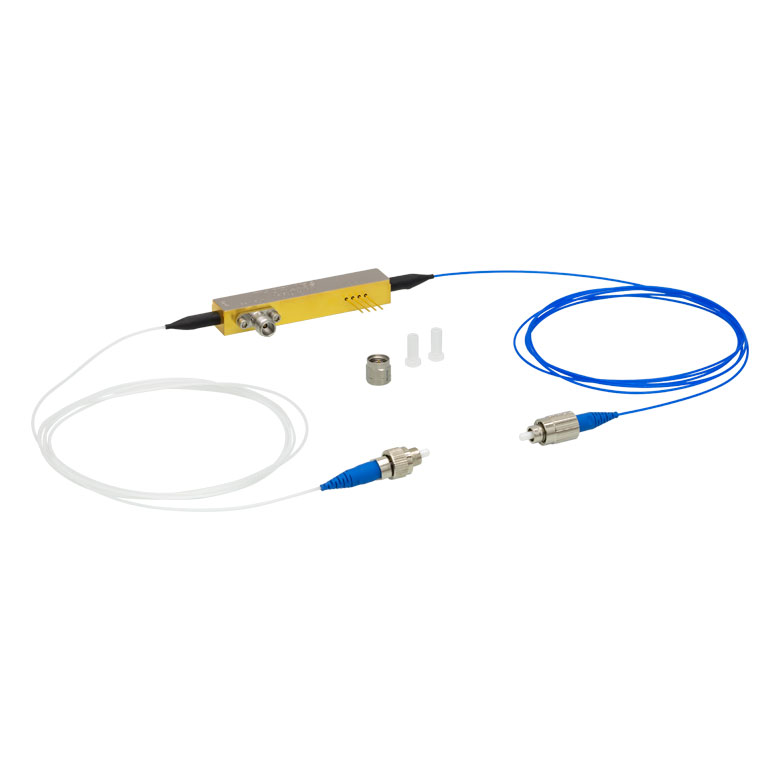

Optical
Operating Wavelength(a): 1260 nm-1625 nm
Optical Insertion Loss: ≤5.5 dB (5.0 dB Typ.) @ 1310 nm. ≤4.5 dB (4.0 dB Typ.) @ 1550 nm
Optical Return Loss : ≥40 dB
Optical Input Power: ≤100 mW
Electrical
S11: -12 dB (-10 dB Max), DC to 30 GHz. -10 dB (-8 dB Max), 30 to 40 GHz
E/O Bandwidth (-3 dB): 35 GHz Typ.
Operating Frequency Range : DC to 40 GHz (Min)
RF Vπ : ≤9.5 V (8.5 V Typ.) @ 30 GHz
RF Input Power: 24 dBm Maximum
Low-Frequency Modulator Specifications (@ 1550 nm)
Operating Frequency Range: DC to 1 MHz (Typ.)
Vπ: 10 V (Typ.) @ 1 kHz
Mechanical
Crystal Orientation: Z-Cut
RF Connection: Male SMP (GPO® Compatible), Full Detent
Fiber Type:
- Input: PANDA Polarization Maintaining
- Output: Female 1.85 mm (V)
Fiber Lead Length: 1.5 m Typ.
Environmental
Operating Case Temperature: 0 °C - 70 °C
Storage Temperature: -40 °C - 85 °C
(a) These modulators are designed for use at the specified wavelengths. Using the modulator at other wavelengths may cause an increase in the optical loss that is not covered under warranty. In some cases, this loss can be temporary; for instance, the increase in loss caused by shorter wavelengths can usually be reversed by heating the modulator to 80 °C for an hour.
