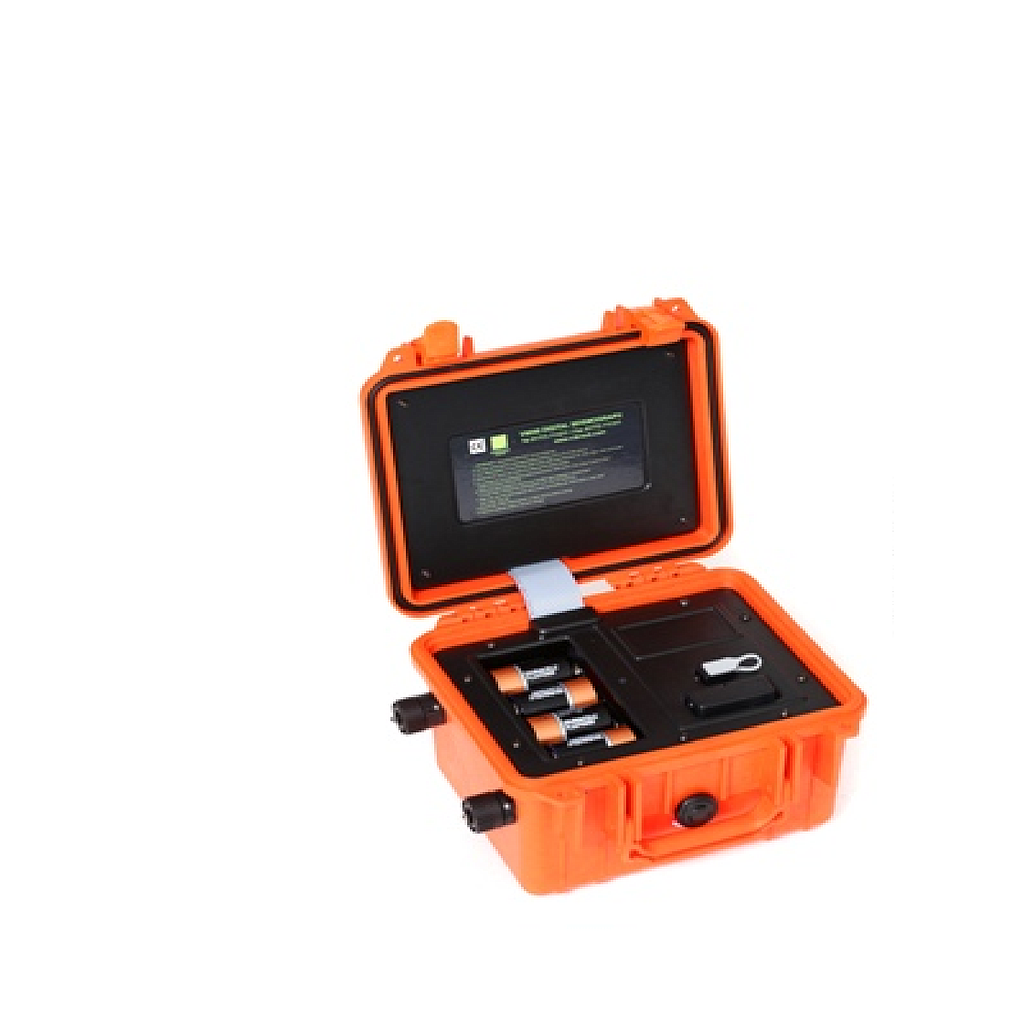

Vibrock V9000 Seismograph

The all new V9000 Seismograph is designed and manufactured by Vibrock Ltd to meet the needs of our customers. The V9000 Seismograph is a battery powered portable vibration monitor, designed for monitoring blasting, piling, demolition, construction and traffic vibrations. It can also monitor dominant frequencies as well as air overpressure from blasting, using the optional microphone.

New features include internet based remote capability, frequency plotting in accordance with BS 5228 Part 2: 2009 and BS 7385 Part 2; 1993, multiple text alarm functions, larger screen with graphical representation, 7 day timer function, sleep mode, basic and custom set up, selectable data storage rate, data storage for all 3 axes, and extended battery life of up to 40 days.

Results can be downloaded to a PC, using Vibrocks all new plug and play software, and can be saved, analysed, printed and exported to Microsoft Excel. The V9000 Seismograph is also available as a twin channel transducer instrument enabling measurements on a common time base in two locations simultaneously. The V9000 Seismograph also measures vibration dose value (VDV) to BS 6472 Part 1:2008.

Power source : 4 alkaline D cells

Battery life : up to 30 days ( 24hours/day )

Dimensions : 300mm x 250mm x 180mm

Weight : 3 kg

Operating temperature : -5 to 50 C

Optional modem specifications :

Power source : separate internal 12V battery gives up to 30 days remote monitoring ( 24hours/day )

Battery charger : can be used to power the seismograph

GSM Functions : Remote download of the Seismograph memory

Remote operation of the Seismograph

Watch the Seismograph monitoring in real time

SMS alarm warnings ( 6 of)

Programmable timed data upload

Accessories : 1 x tri-axial geophone pack

1 x CD ROM containing Vibrock Software

1 x instructon book

1 x USB download lead

1 x shoulder bag

1 x calibration certificate

Options : Modem conncectivity

Text alerts ( stattus and alarms )
