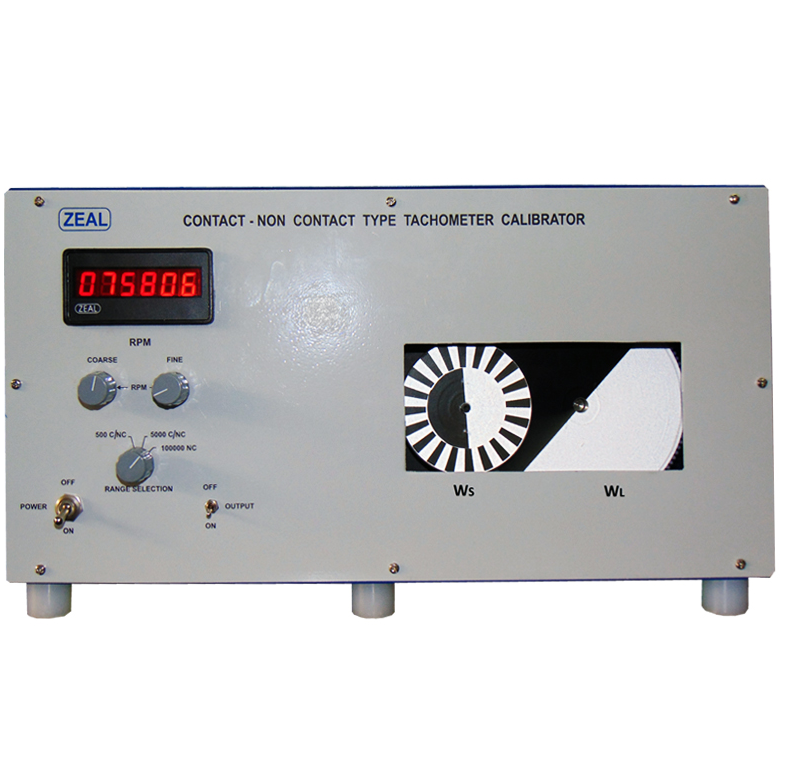

ZEAL ZMC-NTC Contact – Non Contact Type Tachometer Calibrator (10~100000 RPM)

Input Power: 230 VAC, 50 Hz

Ranges:

•  10 to 500 RPM Contact Type, Large Wheel ( WL )

•  10 to 500 RPM Non Contact Type, Optical reflection on Large Wheel ( WL )

•  100 to 5000 RPM Contact Type, Small Wheel ( WS )

•  100 to 5000 RPM Non Contact Type, Small Wheel ( WS )

•  2000 to 100000 RPM Non Contact Type, Optical reflection  on Small Wheel ( X20 ) ( WS )

Resolution:

• 0.01 for 10 to 500 RPM ( Contact Type )

• 0.01 for 10 to 500 RPM ( Non Contact Type )

• 0.1 for 100 to 5000 RPM ( Contact Type )

• 0.1 for 100 to 5000 RPM ( Non Contact Type )

• 1 for 2000 to 100000 RPM ( Non Contact Type )

Metering: 6 Digit display to monitor Set RPM

Controls:

• Range Selection by Decade Switch,

• RPM Setting by Coarse & Fine Potentiometer

Accuracy: 0.05% ± 2 digit (With or Without Contact Load)

Weight: 22 kg
