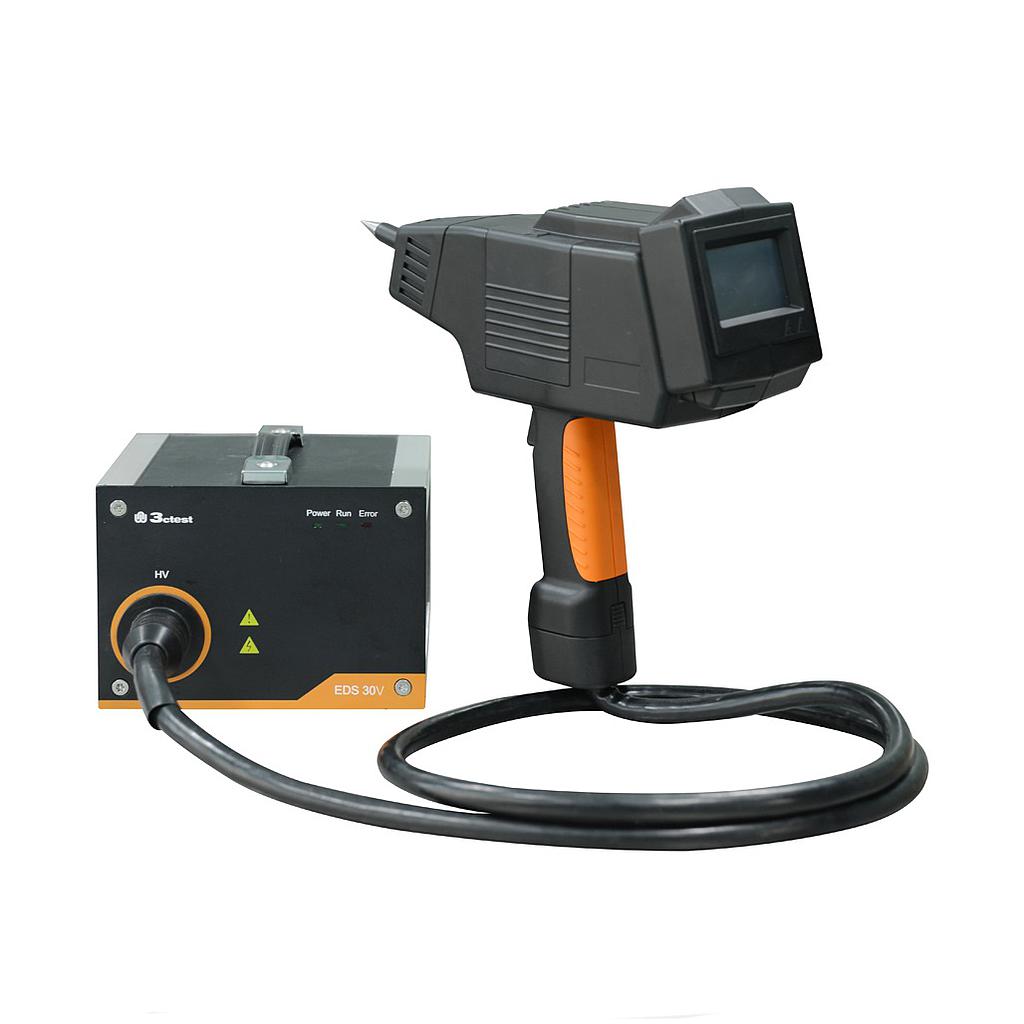

3ctest EDS 30V Electrostatic Discharge Simulator (200V – 30.000V, +/-5%)

- Technical parameters:

Contact discharge: 200 V – 30,000 V, +/-5%

Air discharge: 200 V – 30,000 V, +/-5%

Voltage step: 100 V

Holding time: > 5 s

Polarity: +/-

RC module recognition: Automatic recognition and LCD  display

Temperature and humidity: Built-in thermo-hygrometer with record and protection function

Pulse repetition rate: single/0.1/0.2/0.5/1/2/5/10/20 Hz

Trigger mode: manual& auto

Pulse counter: 1-9999

Discharge module:

330 pF / 2000 Ω

150 pF / 2000 Ω

330 pF / 330 Ω

150 pF / 330 Ω

Rising time: 0.7-1.0 ns

Evaluate procedure: Contact discharge test at 20 Hz，evaluate the test points of DUT

- General parameters:

Total Weight: Approx.12.0 kg

Weight (EDS gun): Approx.2.0 kg

Environment temperature: 15 ℃ - 35 ℃（operating conditions）

Relative humidity: 30%-60%（operating conditions）

Air pressure: 86 kPa-106 kPa

Working power supply: 100 V - 240 V +/-10%, 50/60 Hz
