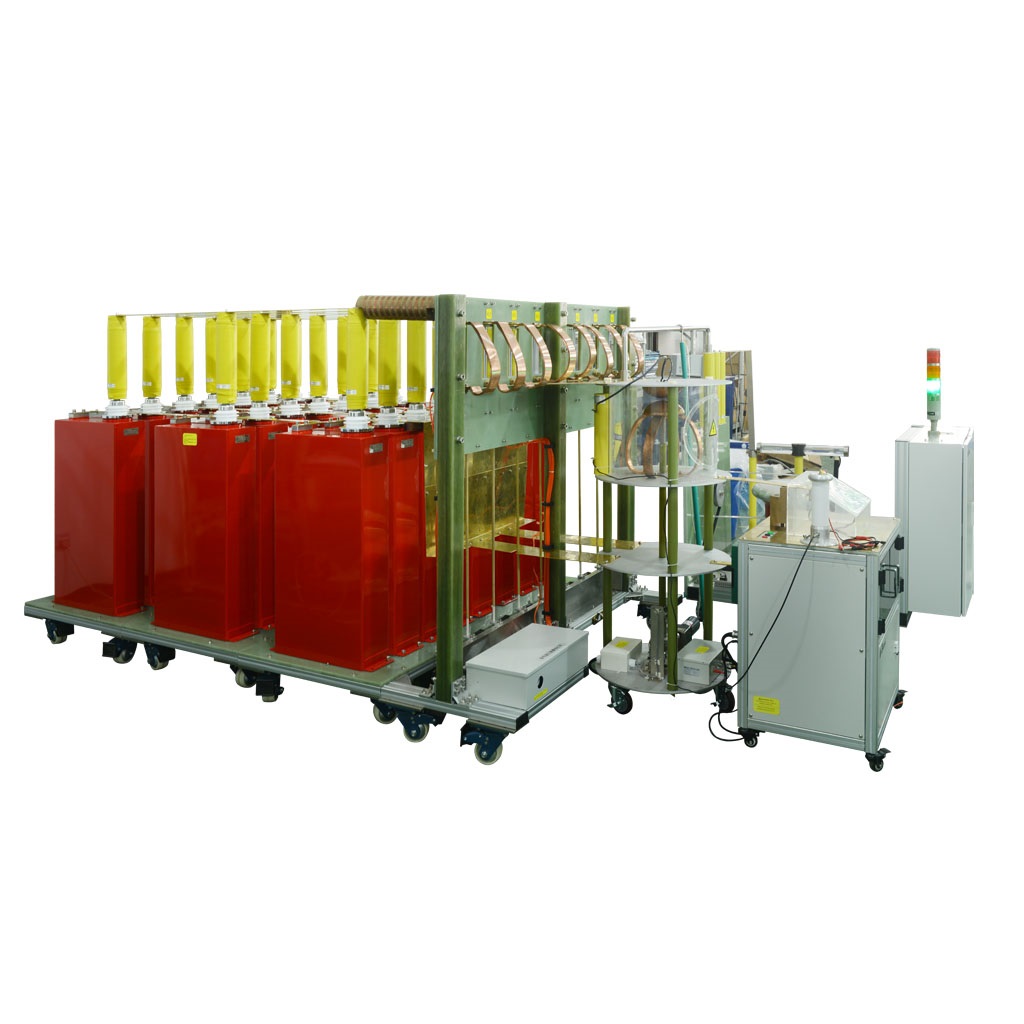

Current peak: 1～50kA
Stored energy: 200kJ
Charging voltage: 14 kV
Supply mains: AC220V 100A
Installation : frame
Item : 10/350μs current wave
Output peak: 10kA，15kA，25kA，35kA，50kA，100kA
T1 front time: 10μs（＜50μS）
T2 wave tail time: 350μs±10%
Reversed overshoot: none
Front oscillatory:＜5%
Voltage polarity: +/-, (automatic switch)
Waveform switch: Automatic switch
Charging time: 10s~999s
Charging voltage instability: Less than 1%
External sync input: 50Hz
Trigger mode: Automatic or manual, single trigger available
Trigger malfunction rate: Less than 1%
Trigger range : 100% rated charging voltage
Phase test range: 0～360°
Operating load test: internal，0～500V，5A continuous supply
Display screen: 10 inch TFT color touch screen
Measurement display resolution: Better than 3%
DUTMOV, TVS, GDT, SPD, mains surge protection device
DUT residual voltage: ＜5kV
Current measurement (optional): Internal test box, Rogowski coil measurement, panel BNC output
Voltage measurement (optional): Internal test box, pure-resistance voltage divider, panel BNC output
Oscilloscope: MDO3012, optional
Insulation strength: ≤500V RMS（common port COMMON to ground reference PE）
- General data:
Power supply: AC220V±10%，50/60Hz，10A
Temperature: -10~+40℃
Humidity : 35%-85%RH (no condensation）
Ground resistance: No more than 0.5Ω
Structure: Open style, control and base separated
Size of test room: Depends on model（base）+3M*5M（control)
Control table: 1.8M（width）*1.1M（height）*1M（depth)
No conductive dust, no fire or explosion danger, no corrosive metal and insulation air. Wave form of mains voltage is sine wave. The THD is <5%.
