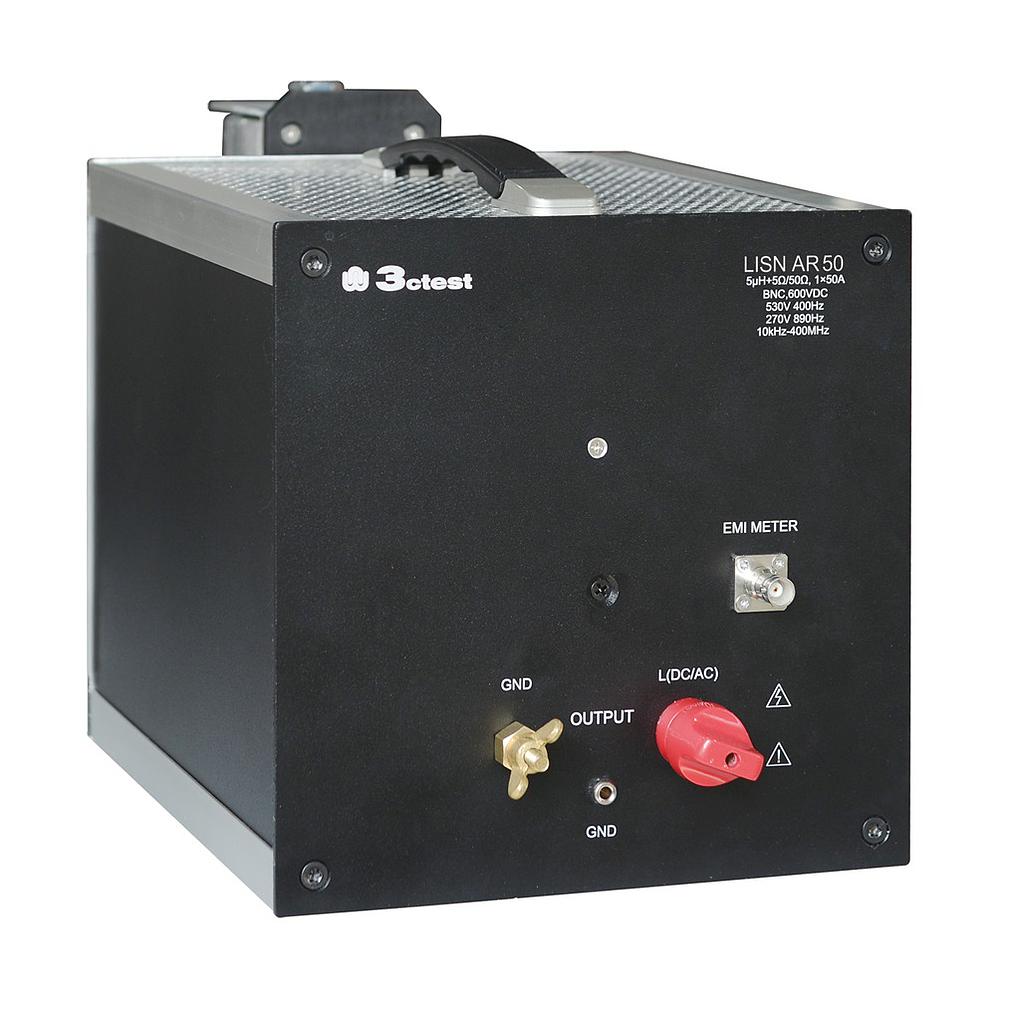

3ctest LISN AR 50 Line Impedance Stabilization Network (0.01 MHz ~ 400 MHz)
Manufacturer: 3ctest Model: LISN AR 50 - Contact
- Technical Parameters:
Test Voltage (Vmax): 600 VDC, 530 V 400 Hz, 270 V 890 Hz
Test Current (Imax): 50 A
Transient Max. Current: 100 A
Coaxial Terminal: BNC type
Inductance: 5 μH
Coupling Capacitor: 0.1 μF
Impedance Frequency Scope: 0.01 MHz ~ 400 MHz
- General Parameters:
Dimension: 220 mm (L)×220 mm (W) ×257 mm (H)
Weight : Approx. 5 kg
Ambient Temperature: 15 ℃ - 35 ℃
Relative Humidity: 45% - 75%
Atmosphere Pressure Range: 86 kPa – 106 kPa
