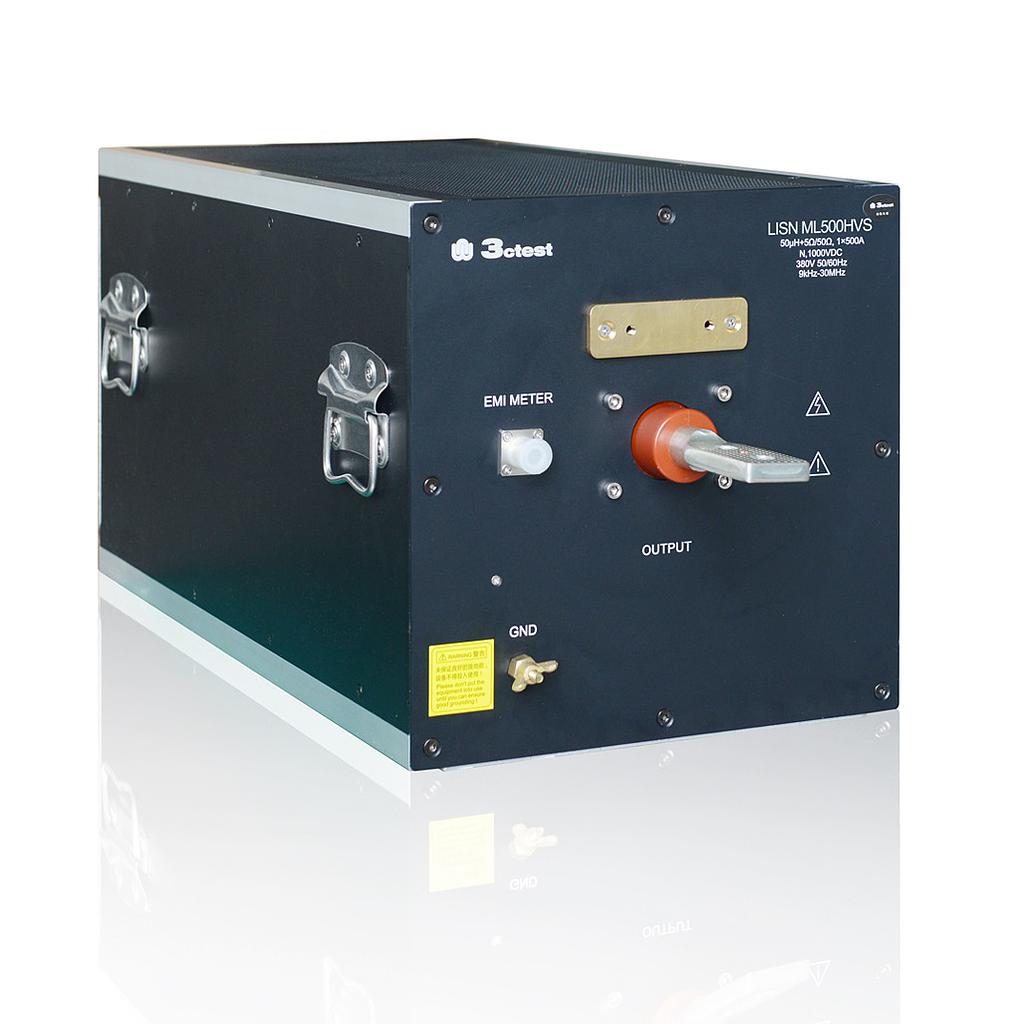

3ctest LISN ML500HVS Line Impedance Stabilization Network (9 kHz~30 MHz)
Manufacturer: 3ctest Model: LISN ML500HVS - Contact
- Technical Parameters:
Test Voltage (Vmax): 1000 V DC, 380 V 50 Hz/60Hz
Test Current（Imax): 500 A
Test Terminal: Type N
Inductance: 50 μH
Impedance: 50 μH+5 Ω‖50 Ω
Coupling Capacitor: 0.25 μF
Impedance Frequency Range: 9 kHz-30 MHz
- General Parameters:
Power supply: AC 110/220 V, ±10%, 50 Hz/60 Hz (±5%) (Default AC 220 V 50 Hz in mainland China)
Dimension: 310 mm*310 mm*870 mm (L*W*H)
Ambient Temperature: 15 ℃~ 35 ℃
Relative Humidity: 45% ~ 75%
Weight: Approx. 55 kg
