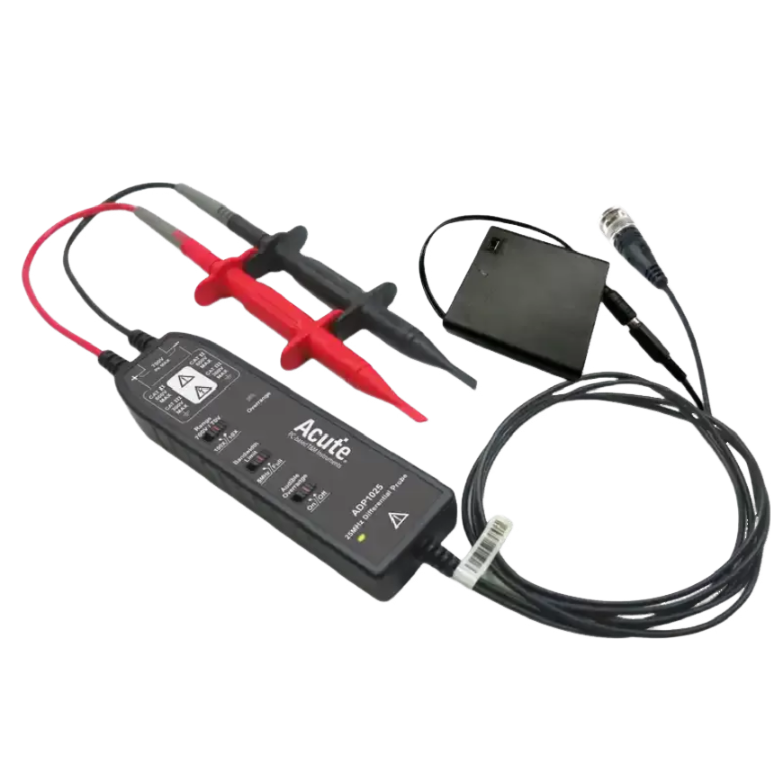

Acute ADP1025-B High-performance differential voltage measurement probe (Battery; 25MHz; 10X / 100X; 700V)

Bandwidth (-3dB): 25MHz

Attenuation: 1:10/100

DC Gain Accuracy: ±2%

Offset zero (Scope gain=1X): ±10 mV

Between Inputs: 10Mohm, 1pF

Each input to Gnd: 5Mohm, 2pF

Rise time (small signal，10-90%，20-30°C): 14ns

Input voltage Diff. Vin (DC+ pk AC): 100X: ±700V; 10X: ±70V

Input voltage Comm. Vin: ±700V

Input voltage Max. Vin to Earth:

CAT II 600V

CAT III 300V

Impulse withstand: 2500V

CMRR (typical):

60Hz: > 80dB

100kHz: > 60dB

3MHz: > 40dB

10MHz: > 35dB

Power by: Battery (AA / R6 / LR6)

Length of BNC / USB-cable: 90cm

Length of Lead-cable: 24cm

※ The battery-powered version is made to order; please confirm the delivery lead time before placing an order.
