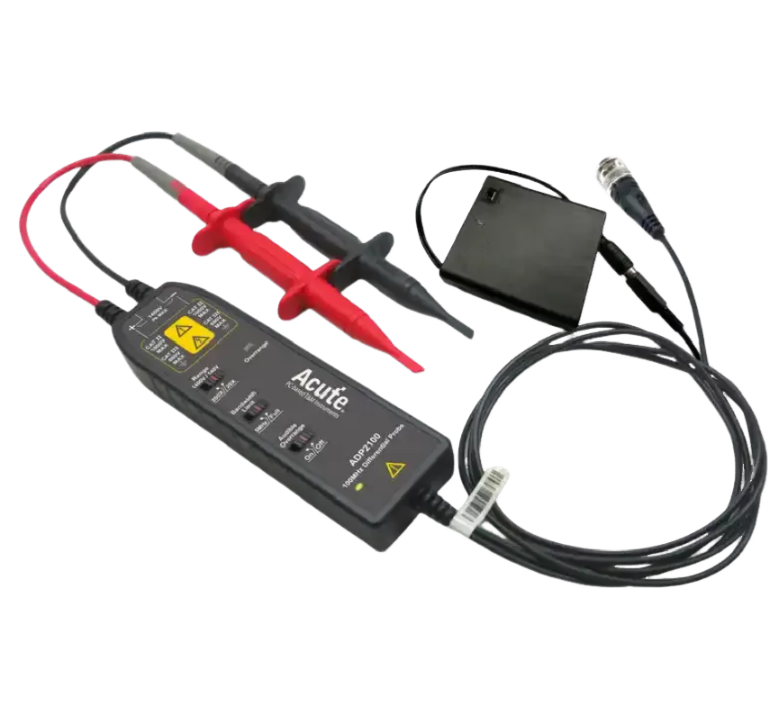

Acute ADP2100-U High-performance differential voltage measurement probe (USB port; 100MHz; 20X / 200X; 1400V)
Manufacturer: Acute Model: ADP2100-U - Contact
Bandwidth (-3dB): 100MHz
Attenuation: 1:20/200
DC Gain Accuracy: ±2%
Offset zero (Scope gain=1X): ±10 mV
Between Inputs: 10Mohm, 1pF
Each input to Gnd: 5Mohm, 2pF
Rise time (small signal，10-90%，20-30°C): ≦3.7ns
Input voltage Diff. Vin (DC+ pk AC): 200X: ±1400V; 20X: ±140V
Input voltage Comm. Vin: ±1400V
Input voltage Max. Vin to Earth: CAT II 1000V; CAT III 600V
Impulse withstand: 4000V
CMRR (typical):
60Hz: > 80dB
100kHz: > 60dB
3MHz: > 40dB
10MHz: > 35dB
Power by: USB (5V, < 250mA)
Length of BNC / USB-cable: 90cm
Length of Lead-cable: 24cm
