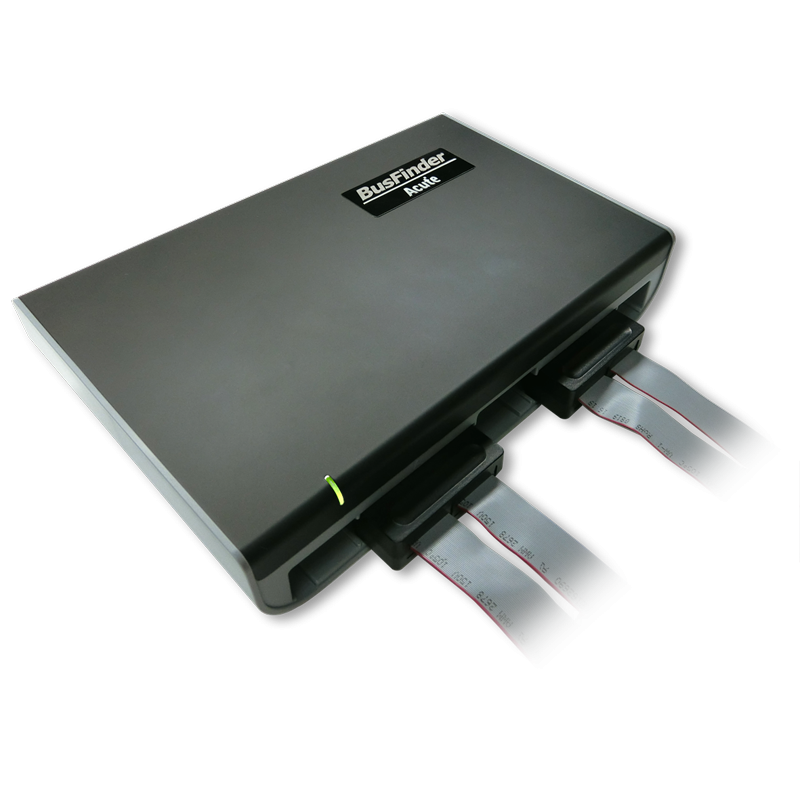

Acute BF7264 BusFinder protocol analyzer (64 CH; 32Gb)

Power Source: 12V Power adapter

Static Power Consumption: 18W

Max Power Consumption: 45W

Hardware Interface: USB 3.0

Timing Analysis (Asynchronous，Max. Sample Rate): 4GHz

State Clock Rate (Synchronous，External Clock): 400MHz

Storage: Conventional Timing, Transitional Timing

Channels: 64

Total Memory: 32 Gb

Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch

4GHz Timing [Available Chs] - Memory per Ch: [16 / 16]-1Gb

2GHz Timing [Available Chs] - Memory per Ch: [32 / 32]-1Gb

1GHz Timing [Available Chs] - Memory per Ch: [64/ 64]-500Mb

500MHz Timing [Available Chs] - Memory per Ch: [64/ 64]-500Mb

250MHz Timing [Available Chs] - Memory per Ch: [64/ 64]-500Mb

Channel to channel skew: < 250 ps

Input channels: N/A

Input impedance: See Tip specification

Max. (Non-destructive): N/A

Input operation: See Tip specification

Input sensitivity: See Tip specification

Threshold group: See Tip specification

Threshold range: See Tip specification

Threshold resolution: See Tip specification

Threshold accuracy: N/A

Trigger resolution: See Tip specification

Trigger types: Channel, Pattern, Single / Multi Level, Width, Time-out, External

Protocol Trigger: OptionLA Probe: eMMC 5.1, NAND Flash, SD 3.0 (SDIO 3.0), Serial Flash (SPI NAND),

Protocol Analyzer: Option: eDP1.4a, eMMC 5.1, MIPI D-PHY 1.2, NAND Flash, SD 3.0(SDIO 3.0), SD 4.1 (UHS-II), SGMII, UFS 2.1
