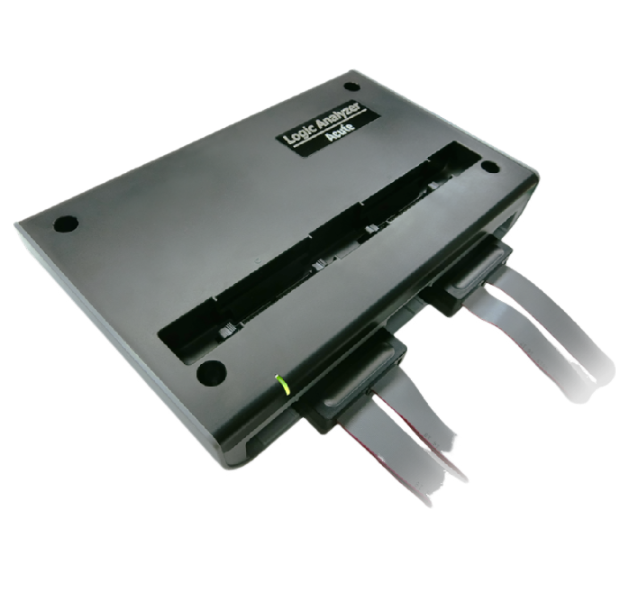

Acute LA4068E Logic analyzer (68 channels ; 400MHz; 32Gb)

Power Source: 12V Power adapter

Static Power Consumption: 18W

Max Power Consumption: 45W

Hardware Interface: USB 3.0

Timing Analysis (Asynchronous，Max. Sample Rate): 4GHz

State Clock Rate (Synchronous，External Clock): 400MHz

Storage: Conventional Timing, Transitional Timing

Channels: 68

Total Memory: 32Gb

Timing Analysis: Available Chs (Conventional / Transitional Timing) - Memory per Ch

4GHz Timing [Available Chs] - Memory per Ch: [16 / 16]-2Gb

2GHz Timing [Available Chs] - Memory per Ch: [32 / 32]-1Gb

1GHz Timing [Available Chs] - Memory per Ch: [64/ 56]-500Mb

500MHz Timing [Available Chs] - Memory per Ch: [64 / 64]-500Mb

250MHz Timing [Available Chs] - Memory per Ch: [64 / 64]-500Mb

Channel to channel skew: 250 ps

Input channels: N/A

Input impedance: ~ 55KΩ || <2pF to 1Vdc

Max. (Non-destructive): ±40V

Input operation: ±15V

Input sensitivity: ~300mV

Threshold group: N/A

Threshold range: ±15V

Threshold resolution: 10mV

Threshold accuracy: ±100mV + 5%* Vth

Trigger resolution: 250 ps

Trigger types: Channel, Pattern, Single / Multi Level, Parallel Clause, Width, Time-out, External

Protocol Trigger:

BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SENT, SPI, UART (RS232), USB PD 3

Protocol Analyzer:

BiSS-C, CAN2.0B/CAN FD, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MIPI I3C 1.1, SPI, UART (RS232), USB PD 3
